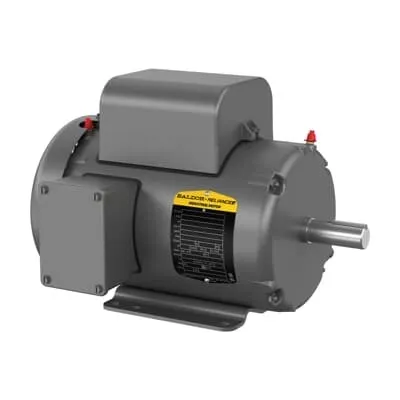

ABB 7BEL3514T General Purpose Motor - CSA UR TEFC
Part Number: 7BEL3514T
Quick Summary
ABB 7BEL3514T is a general purpose motor for single‑phase drives in light industrial equipment. This 1.5 HP motor operates at 115 V or 230 V, delivering steady torque for conveyors, fans, and pumps without complex soft-start requirements. For engineers, downtime, maintenance cost, and inconsistent supply chain are common pain points; this motor offers robust TEFC construction, regreasable bearings, and a favorable service factor to help mitigate those risks. It is RoHS compliant and supported by CSA and UR certifications, ensuring regulatory alignment in North American and global facilities. With a 145T frame, foot mounting, and horizontal orientation, it installs quickly into standard OEM equipment. Availability is confirmed across multiple warehouses, reducing lead times and simplifying procurement for projects with aggressive schedules.
Product Information
Extended Description
7BEL3514T ABB: General Purpose Motor 1.5 Hp 115 V (EL3514T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1725RPM,1PH,60HZ,145T,3532LC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EL3514T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYEE001: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
EL3514T
Gross Volume
3496.049 in³
Gross Weight
58 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1.5HP,1725RPM,1PH,60HZ,145T,3532LC,TEFC
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Enclosed, 1.5 HP, 1800 RPM, Frame Size 145T, Standard Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (EL351
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
98 %
Product Name
General Purpose 1PH Enclosed
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
58 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.2 A | 6.1 A
Rated Efficiency
80 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B35EE001G242G2
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145T, Standard, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
J
Voltage Rating
115 V | 230 V
Feature: TEFC enclosure and rugged 145T frame provide dust and moisture protection for demanding environments. Business Impact: Enables reliable operation in non-laboratory settings, reducing unplanned downtime. Application: Suitable for conveyors, pumps, and small process lines in manufacturing. Feature: 1.5 HP, 1725 rpm, 60 Hz, 4-pole design delivers steady torque and consistent speed control. Business Impact: Improves process stability and energy efficiency in light industrial drives. Application: Fans, blowers, and light-duty conveyors where predictable performance matters. Feature: Regreasable bearings (6205 and 6203 NDE) extend service life with periodic maintenance. Business Impact: Lower maintenance costs and longer mean time between service events. Application: High-cycle applications with regular lubrication schedules. Feature: 115/230 V single-phase, direct-on-line starting. Business Impact: Simplifies electrical integration and minimizes control complexity. Application: Basic line-start equipment and OEM drives that require straightforward commissioning. Feature: RoHS compliant, CSA and UR certified, 145T frame, foot-mounted, horizontal mounting (F1). Business Impact: Regulatory compliance and standardization across facilities; easy retrofits and fast OEM integration. Application: Global deployments in packaging, material handling, and consumer goods automation. Feature: Service Factor 1.15 and rated efficiency around 80% support robust performance under modest overload conditions. Business Impact: Increased reliability and potential energy savings over the motor’s life. Application: Continuous-duty‑leaning tasks like light conveyors and fans that demand steady output without frequent replacements.
Get a Quick Quote for a ABB 7BEL3514T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEL3514T?
Enquire Now
FAQs
Yes. The 7BEL3514T is a 1-phase motor with 115/230 V operation and 60 Hz compatibility, delivering 1.5 HP at 1725 rpm. It uses a Direct On Line start for straightforward electrical integration and is mounted as a horizontal, foot-mounted unit (F1) for easy OEM installation.
The motor uses a 145T frame and is foot-mounted with horizontal orientation (F1). It supports a compact footprint for space-constrained installations and aligns with standard NEMA mounting patterns to simplify retrofits and replacements.
This motor is CSA and UR certified and RoHS compliant, ensuring regulatory conformity in North America and many international markets. Such certifications support safer installation, easier procurement, and faster commissioning within controlled manufacturing environments.
The 7BEL3514T employs regreasable bearings (6205 and 6203 NDE). Regular lubrication per your maintenance schedule extends bearing life and reduces unexpected downtime, a common concern for continuous or semi-continuous operations.
Lead time is listed as 0 day with stock available at multiple warehouses, including US and international locations. This enables rapid procurement and quicker project ramp-up for critical automation tasks.
