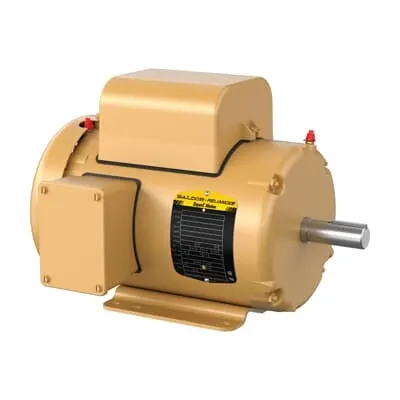

ABB 7BEL3515T General Purpose Motor - 2 HP, 1PH, TEFC
Part Number: 7BEL3515T
Quick Summary
ABB 7BEL3515T General Purpose Motor is a compact, single-phase solution delivering 2 HP at 115 V with TEFC protection for dependable operation in light industrial pumps, fans, and conveyors. This model addresses the common challenge of reliable, easy-to-install motors in demanding environments. With CSA and UR certifications and a NEMA-compliant design, it supports compliant integration into industrial panels and maintenance programs. The motor’s RoHS compliance and 60 Hz operation further ensure modern, safe performance across North American facilities. By combining strong mechanicals with straightforward installation, this motor reduces downtime, accelerates procurement, and improves total cost of ownership for OEMs and end users alike.
Product Information
Extended Description
7BEL3515T ABB: General Purpose Motor 2 Hp 115 V (EL3515T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3450RPM,1PH,60HZ,145T,3535LC,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EL3515T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYU807: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
EL3515T
Gross Volume
3496.049 in³
Gross Weight
65 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,3450RPM,1PH,60HZ,145T,3535LC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Enclosed, 2 HP, 3600 RPM, Frame Size 143T, Standard Mounting, 1 Phase, TEFC Enclosure, 115/208-230 V, 60 Hz (EL3
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
96 %
Product Name
General Purpose 1PH Enclosed
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
65 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
16.8 A | 9.1 A | 8.3 A
Rated Efficiency
77 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35U807Y963G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 3600 RPM, Frame Size 143T, Standard, 1 PH, TEFC, 115/208-230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
G
Voltage Rating
115 V | 208 V | 230 V
Feature → Business Impact → Application: 2 HP, 1PH, 60 Hz operation in a TEFC enclosure provides robust protection against contaminants, enabling longer service life in dusty or humid plants. This translates to reduced maintenance cycles and lower downtime during production, ideal for pumps and fans in HVAC, process lines, and material handling. Feature → Application Compatibility → The 143T frame size with foot-mounted base and horizontal mounting orientation simplifies retrofit projects and new installations, enabling quick alignment with existing frames and mounting feet. Feature → Measurable Efficiency → With a rated efficiency of 77% and a 0.96 power factor, energy costs drop over the motor’s life while electrical dip and voltage fluctuations are better managed in 115 V systems, improving site power reliability. Feature → Reliability & Certification → CSA/UR certifications and RoHS compliance provide assurance for regulatory audits and supplier qualification, reducing risk in quality-critical environments such as food processing or pharmaceutical packaging. Feature → Durability & Maintenance → Regreasable bearings (6205/Ball, 6203/NDE) and a 60-minute duty-time support predictable maintenance intervals and uptime, essential for continuous-process applications like conveyors and mixers. Feature → Operating Conditions & Installation → Temperature class F, 1000 m altitude rating and 40 °C ambient capability enable stable performance in moderately harsh plant floors, while the direct-on-line (DOL) starting reduces missing synchronization during startup. Additional context: the motor is designed for continuous duty with a robust steel frame and standard mounting (F1), making it a practical, long-term replacement option that minimizes lifecycle costs and simplifies spares planning. Long-tail keywords embedded: single-phase motor 2 HP, TEFC enclosure motors, 143T frame motors, 60 Hz motors, RoHS compliant motor, CSA UR certified motor, foot-mounted motor.
