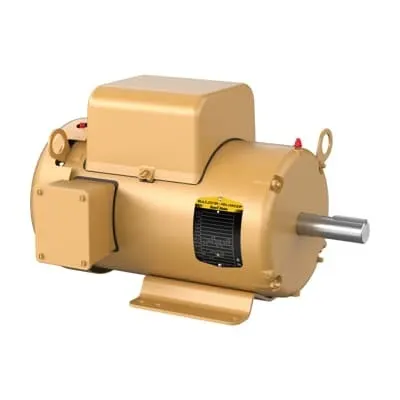

ABB EL3612T General Purpose Motor - TEFC, 1PH, CSA
Part Number: 7BEL3612T
Quick Summary
The ABB EL3612T is a general purpose motor designed for light industrial drives, conveyors, and fans. It helps engineers avoid downtime and installation headaches by combining a rugged TEFC enclosure with 230 V single‑phase operation and direct‑on‑line starting for quick commissioning. Certified for safety and reliability, it carries CSA EEV, NEMA Premium, and UR marks to meet stringent industry standards. Stocked across multiple warehouses, the EL3612T supports fast replacement and scalable assembly for OEMs and service teams, while its 184T frame and foot‑mounted configuration simplify retrofits and field mounting. With a 5 HP rating and 1735 rpm, it delivers dependable torque in everyday automation tasks.
Product Information
Extended Description
7BEL3612T ABB: General Purpose Motor 5 Hp 230 V (EL3612T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1735RPM,1PH,60HZ,184T,3646LC,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EL3612T
Certification Agency
CSA | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYE004: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EL3612T
Gross Volume
5274.135 in³
Gross Weight
97 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1735RPM,1PH,60HZ,184T,3646LC,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 1PH Enclosed, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 1 Phase, TEFC Enclosure, 230 V, 60 Hz (EL3612T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
97 %
Product Name
General Purpose 1PH Enclosed
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
97 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19.1 A
Rated Efficiency
86.50 %
Rated Speed
1735 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 1 PH, TEFC, 230 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101116
Voltage Code
G
Voltage Rating
230 V
Feature: TEFC enclosure and 184T foot‑mounted frame. Business Impact: Protects internal windings from dust and moisture, extending motor life and reducing maintenance. Application: Suitable for conveyors and fans in dusty plant environments. Feature: 1‑phase 230 V, 60 Hz operation. Business Impact: Simplifies electrical installation, lowers wiring complexity, and reduces initial electrical infrastructure costs. Application: Light duty automation, OEM equipment, and retrofit projects. Feature: 5 HP, 1735 rpm (4P) performance. Business Impact: Delivers adequate start‑up torque and steady speed for moderate loads, improving process stability and throughput. Application: Small pumps, material handling, and machine tools. Feature: Regreasable bearings and F insulation class. Business Impact: Enhances service life in moderate ambient conditions (40 °C) and lowers lubrication maintenance intervals. Application: Continuous duty tasks in production lines. Feature: High efficiency and power factor (86.5% / 97%). Business Impact: Reduces operating energy costs and cooling loads, contributing to lower total cost of ownership. Application: Energy‑sensitive aggregates and line shafts. Feature: Direct on line starting and Synchronous Speed 1800 r/min. Business Impact: Enables simple startup and predictable performance with minimal control hardware. Application: Line conveyors and fans requiring straightforward control. Feature: 184T frame, shaft diameter 1.13 in, 97 lb weight. Business Impact: Facilitates straightforward mechanical replacement and compatibility with existing couplings and mounting hardware. Application: Retrofit projects and multi‑line automation platforms. Industry insight: In modern factories, replacing legacy motors with TEFC, single‑phase 1PH units like EL3612T can reduce downtime and simplify spare‑parts management, while maintaining compliance with CSA/NEMA requirements for safer, more reliable operation.
Get a Quick Quote for a ABB 7BEL3612T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEL3612T?
Enquire Now
FAQs
Yes. The EL3612T is a 1‑phase, 230 V motor designed for 184T frame size and foot‑mounted horizontal installation (F1). Its TEFC enclosure supports reliable operation in typical light‑industrial environments, simplifying retrofit projects and new builds alike.
Key specs include 5 HP output, 1735 r/min rated speed, 60 Hz frequency, 4 poles, 1 phase, frame size 184T, TEFC enclosure, insulation class F, and a rated current around 19.1 A. Efficiency is 86.5% with a power factor of 97%, supporting efficient, predictable operation.
Ideal for light‑duty automation such as conveyors, fans, small pumps, and machine tools in packaging, packaging lines, and OEM equipment. The motor’s 184T frame and horizontal mounting make it easy to retrofit into existing equipment without major mechanical changes.
The motor carries CSA, CSA EEV, NEMA Premium, and UR certifications, signaling compliance with electrical safety, performance, and energy efficiency standards. This reduces qualification time on new installations and supports regulatory compliance in many markets.
Regreasable bearings and a robust TEFC enclosure minimize maintenance and contamination risks, lowering downtime. With high efficiency and a straightforward Direct On Line start, maintenance costs stay predictable while ROI improves through reduced energy usage and faster ramp‑up times.
