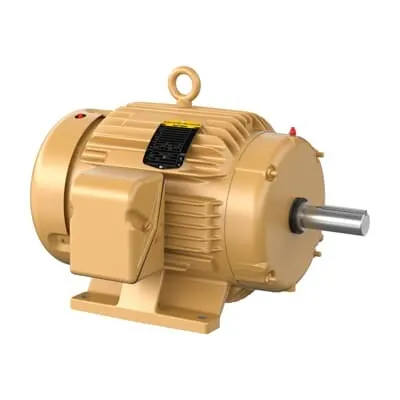

ABB 7BEM2275 General Purpose Motor - 5HP, 1160RPM, TEFC IE3
Part Number: 7BEM2275
Quick Summary
ABB 7BEM2275 General Purpose Motor is a 5 HP, 3-phase motor for pumps, fans, and conveyors. Engineered to minimize downtime and energy waste, it combines premium efficiency with rugged TEFC construction. Certified to CSA, CSA EEV, and UR standards and aligned with NEMA design practices, it supports reliable operation in US manufacturing. For procurement teams, the dual voltage 230/460 V capability and 0-day lead time simplify stocking and planning, while stock is available at multiple warehouses to reduce shipping delays. The result is improved uptime, predictable maintenance intervals, and faster ROI across automation projects. Designed for industrial automation environments, it supports easy integration with standard VFDs and control systems.
Product Information
Extended Description
7BEM2275 ABB: General Purpose Motor 5 Hp 230 V (EM2275)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1160RPM,3PH,60HZ,254U,0748M,TEF
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6307 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM2275
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
07LYH287: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
EM2275
Gross Volume
9144.346 in³
Gross Weight
226 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
5HP,1160RPM,3PH,60HZ,254U,0748M,TEFC,F1
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 5 HP, 1200 RPM, Frame Size 254U, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM2275)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254U
Motor Frame Suffix
U
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
72 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
226 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
14.6 A | 7.3 A
Rated Efficiency
90.20 %
Rated Speed
1160 r/min
Replaced Product ID (OLD)
7B07H287X823G2
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
5 HP, 1200 RPM, Frame Size 254U, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Premium IE3 efficiency reduces energy costs across continuous-duty applications, improving total cost of ownership for pumps, fans, and conveyors in mid- to large-scale plants. Application: HVAC and process lines where motor efficiency directly lowers utility bills and maintenance intervals. Feature → Business Impact → Application: TEFC enclosure protects critical windings in dusty and humid environments, extending motor life and reducing unplanned downtime. Application: Asphalt, mining, and food processing where enclosure integrity matters for compliance and uptime. Feature → Business Impact → Application: Dual voltage 230/460 V operation provides wiring flexibility and reduces spare-part inventories, enabling quicker deployment across mixed fleets. Application: Retrofit projects or new installations with varied electrical infrastructure. Feature → Business Impact → Application: Foot-mounted, horizontal F1 mounting with 254U frame size simplifies installation and alignment with existing bases, reducing installation time and startup risk. Application: Conveyor belts and material handling lines requiring reliable, plug-and-play mounting. Feature → Business Impact → Application: Insulation class F and bearing assembly (6309 ball bearings) enhance longevity under demanding loads, yielding lower maintenance costs and longer service life. Application: Heavy-duty fans and pumps in outdoor or production-floor environments. Feature → Business Impact → Application: Stocked at multiple warehouses with 0-day lead time minimizes downtime for urgent projects and spares replenishment. Application: Emergency replacements and fast-track deployments in automated lines.
