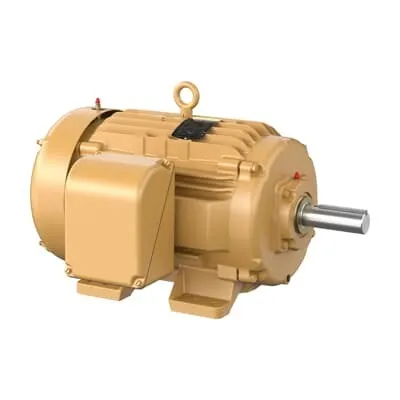

ABB 7BEM2333 Motor - 15 HP TEFC 230/460V CSA/UR
Part Number: 7BEM2333
Quick Summary
ABB 7BEM2333 motor is a robust U-frame, 15 HP, 3‑phase induction solution designed for reliable operation in demanding industrial environments. It combines a compact footprint with a TEFC enclosure, making it ideal for conveyors, pumps, and fans where space, protection, and ease of maintenance matter. Many engineers contend with multiple suppliers and inconsistent lead times; this model consolidates performance, certification, and availability in a single package. With Premium Efficiency, Insulation Class F, and a NEMA design code A, it supports lower energy costs and longer service life in tough applications. Stocked at US and international warehouses, it minimizes downtime and simplifies procurement while supporting dual voltage operation (230/460 V) on a 60 Hz grid.
Product Information
Extended Description
7BEM2333 ABB: U-Frame 15 Hp 230 V (EM2333)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,1765RPM,3PH,60HZ,284U,0944M,TE
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM2333
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYF608: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
EM2333
Gross Volume
14448.906 in³
Gross Weight
315 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
15HP,1765RPM,3PH,60HZ,284U,0944M,TEFC,F1
Made To Order
No
Medium Description
U-Frame, 15 HP, 1800 RPM, Frame Size 284U, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM2333)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284U
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
84 %
Product Name
U-Frame
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
315 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
36.2 A | 18.1 A
Rated Efficiency
92.40 %
Rated Speed
1765 r/min
Replaced Product ID (OLD)
7B09F608T597G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
15 HP, 1800 RPM, Frame Size 284U, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
The U-frame design delivers a compact installation footprint with flexible mounting, enabling straightforward retrofits and space-efficient layouts in conveyors and pumps. The 15 HP rating at 1765 rpm provides robust torque for moderate loads, while the 284U frame ensures compatibility with common couplings and drive assemblies, reducing integration time. TEFC enclosure protects the winding from dust and moisture, extending motor life in harsh factory floors and outdoor environments. Direct On Line starting simplifies control cabinet design and minimizes upfront electrical components, lowering installation cost and accelerating commissioning. Premium Efficiency (92.4%) reduces operating heat and energy bills, improving overall equipment effectiveness (OEE) in continuous-duty applications. Stocked at multiple warehouses with zero day lead times, it supports rapid project delivery and maintenance planning. A 1.63 in shaft diameter and horizontal mounting orientation (F1) streamline coupling selection and mechanical alignment during installation.
Get a Quick Quote for a ABB 7BEM2333
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM2333?
Enquire Now
FAQs
The 7BEM2333 operates at 230 V or 460 V, 3-phase, at 60 Hz. It uses Direct On Line starting, which simplifies control cabinet design and lowers initial installation costs. This makes it well-suited for standard drive systems in conveyors, pumps, and fans where straightforward startup is advantageous.
Yes. The motor is designed for continuous duty with TEFC (Totally Enclosed Fan C cooled) protection, which guards against dust and moisture. Its Insulation Class F supports reliable operation at elevated temperatures, while the 284U frame and 1.63 in shaft diameter ensure dependable performance in long-running tasks like material handling and process cooling.
This motor carries CSA, CSA EEV, and UR certifications, supporting regulatory compliance in North America and international settings. It also aligns with NEMA design practices and uses Premium Efficiency, making it a solid choice for energy-conscious deployments in industrial facilities and retrofit projects.
It is a foot-mounted, horizontal mounting (F1) unit with TEFC enclosure, frame size 284U, and a 1.63 in shaft diameter. These specs enable straightforward alignment with existing couplings and guards, simplify mechanical drawings for installation, and reduce downtime during preventive maintenance or shaft/hub replacements.
Lead time is effectively 0 days, with stock available at multiple warehouses (US and international). This reduces downtime risk, shortens procurement cycles, and improves ROI for retrofit or new installations by ensuring quick delivery, faster commissioning, and improved maintenance planning.
