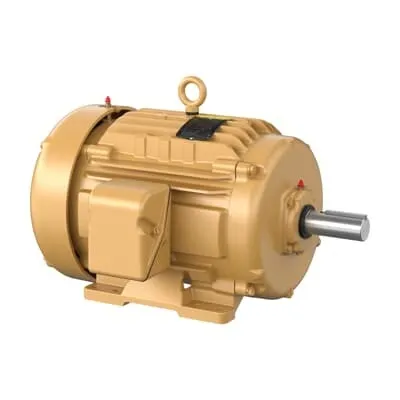

ABB 7BEM2334T-58 General Purpose Motor - IE3/TEFC 400V
Part Number: 7BEM2334T-58
Quick Summary
ABB 7BEM2334T-58 is a general purpose 3-phase motor for continuous-duty drives in conveyors and pumps. When uptime matters, procurement teams need a reliable, code-compliant option with predictable lead times. It carries CE, CSA, UR, and WEEE certifications, plus IE3 efficiency and a TEFC enclosure, supporting regulatory compliance and lower operating costs. With a foot-mounted 256T frame and 400 V at 50 Hz, it fits a wide range of OEM installations and energy-management programs. This combination delivers robust performance, easy maintenance, and fast deployment across industrial motor fleets, helping engineers meet system availability targets while controlling total cost of ownership over time.
Product Information
Extended Description
7BEM2334T-58 ABB: General Purpose Motor 20 Hp 400 V (EM2334T-58)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1465RPM,3PH,50HZ,256T,0956M,TE
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EM2334T-58
Certification Agency
CE | CSA | IE3 | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYF103: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
256
Frequency (f)
50 Hz
Global Commercial Alias
EM2334T-58
Gross Volume
9651.933 in³
Gross Weight
137.892 kg
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
20HP,1465RPM,3PH,50HZ,256T,0956M,TEFC,F1
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 20 HP, 1500 RPM, Frame Size 256T, Standard Mounting, 3 Phase, TEFC Enclosure, 400 V, 50 Hz (EM2334T-58
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
84 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
137.892 kg
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
28 A
Rated Efficiency
92.10 %
Rated Speed
1465 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
20 HP, 1500 RPM, Frame Size 256T, Standard, 3 PH, TEFC, 400 V
Standards
NEMA
Starting of Motor
Wye Start - Delta Run
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
400 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: High-efficiency 20 HP motor at 400 V and 50 Hz with IE3 efficiency. Benefit: Reduces energy consumption and cooling load, lowering long-term operating costs. Application: Ideal for continuous-duty conveyors and pumps in manufacturing lines. Feature: TEFC enclosure for rugged environments. Benefit: Provides dust and moisture protection, extending motor life in harsh facilities. Application: Suitable for packaging, mining, and material-handling applications. Feature: Foot-mounted, 256T frame with 1.63 in shaft diameter. Benefit: Simplifies installation and retrofit into existing systems, minimizing downtime. Application: OEM machines and process equipment with standard bolt patterns. Feature: Starting method Wye-Delta. Benefit: Reduces inrush currents and electrical stress, improving starter life and electrical reliability. Application: Heavy-load conveyors and pumps with frequent starts. Feature: Certifications and global stock coverage (CE, CSA, UR, IE3, WEEE; stock in multiple warehouses; 0-day lead time). Benefit: Ensures regulatory compliance and rapid deployment, reducing project timelines. Application: OEM sourcing, system integration, and spare-part planning across regions. Feature: 20 HP, 1465 rpm rated speed, 400 V, 50 Hz, 3-phase, 256T frame, 1.15 service factor. Benefit: Predictable performance, torque, and reliability for standard industrial duties. Application: General purpose motor for broad industrial applications including conveyors, fans, and pumps.
