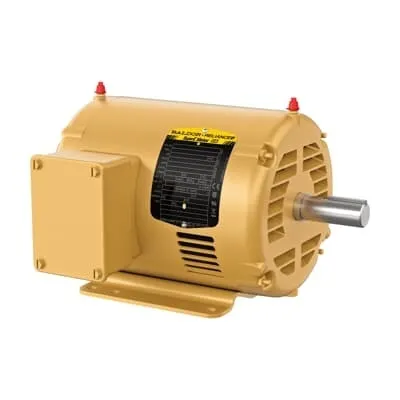

ABB 7BEM3116T-8 General Purpose Motor - IE3 Premium
Part Number: 7BEM3116T-8
Quick Summary
General Purpose Motor 7BEM3116T-8 delivers reliable 1 HP power for open-drive industrial equipment. This model helps engineers reduce energy waste and downtime in 200 V, 60 Hz systems. Many plants struggle with mismatched motor specs, frequent replacements, and lengthy lead times. The motor meets IE3 premium efficiency standards, and it carries CSA and UR certifications with a rugged OPSB enclosure for harsh environments. Additional benefits include a 143T frame size, foot-mounted configuration, and regreasable bearings for long service intervals. By standardizing on this motor, buyers gain improved reliability, easier sourcing across stocked warehouses, and predictable maintenance costs in international operations.
Product Information
Extended Description
7BEM3116T-8 ABB: General Purpose Motor 1 Hp 200 V (EM3116T-8)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1775RPM,3PH,60HZ,143T,3520M,OPS
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3116T-8
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYBB101: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
EM3116T-8
Gross Volume
2110.969 in³
Gross Weight
34 lb
Horsepower Rating UL/CSA
1.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1HP,1775RPM,3PH,60HZ,143T,3520M,OPSB,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Open, 1 HP, 1800 RPM, Frame Size 143T, Standard Mounting, 3 Phase, OPSB Enclosure, 200 V, 60 Hz (EM3116T-8)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
71 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
34 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.5 A
Rated Efficiency
85.50 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B35BB101G118G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 143T, Standard, 3 PH, OPSB, 200 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
200 V
Feature → Business Impact → Application: IE3 premium efficiency at 1 HP for 200 V 60 Hz reduces operating costs and heat generation, extending motor life in continuous duty environments and lowering cooling requirements on open systems. This translates to tangible energy savings and lower total cost of ownership for conveyors, pumps, and fans in manufacturing lines. Feature → Business Impact → Application: OPSB enclosure provides rugged protection in industrial settings, enabling compliant operation in open or semi-enclosed spaces without sacrificing accessibility for maintenance. Use this in material handling, blowers, and processing equipment where environmental exposure is a concern. Feature → Business Impact → Application: Foot-mounted, horizontal orientation with a 143T frame and standard drive end flange simplifies installation and replacement, reducing commissioning time and retrofit costs in OEM machines and retrofits. Feature → Business Impact → Application: Regreasable bearings (6205) and a 0.88 in shaft diameter support long intervals between servicing, decreasing maintenance frequency for long-run conveyors and chillers in food and beverage or metalworking. Feature → Business Impact → Application: Direct On Line starting and a 60 Min duty rating position this motor for reliable start-up in belt-driven fans and pumps, minimizing inrush management and downtime on production lines. Feature → Business Impact → Application: Global stock with 0 day lead times and multiple warehouse locations (US, China) enable rapid procurement, improving uptime for emergency replacements and service contracts in automotive and packaging sectors.
