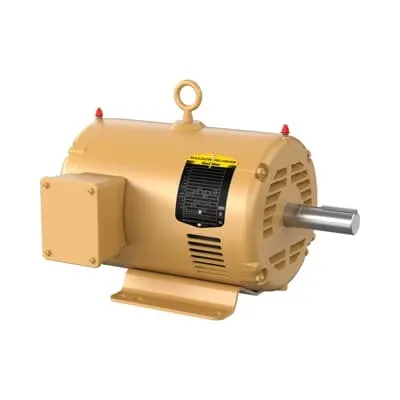

ABB 7BEM3211T-8 General Purpose Motor - IE3
Part Number: 7BEM3211T-8
Quick Summary
ABB 7BEM3211T-8 General Purpose Motor is a robust 3 HP, 200 V AC motor designed for open-drive applications such as conveyors, pumps, and fans in industrial equipment. This design emphasizes uptime and predictable performance in harsh environments, helping maintenance teams reduce unplanned downtime and spare-parts costs. With IE3 Premium efficiency and certifications from CSA and UR, the motor meets modern energy and safety standards while delivering meaningful energy savings and compliance confidence. The NEMA Design B profile and OPSB enclosure simplify system integration on standard 182T frames, enabling straightforward mounting and fast ROI for US-based manufacturing and distribution facilities. For buyers seeking durable, compliant motors with easy installation, this solution provides a reliable, long-term operating platform.
Product Information
Extended Description
7BEM3211T-8 ABB: General Purpose Motor 3 Hp 200 V (EM3211T-8)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1765RPM,3PH,60HZ,182T,3630M,OPS
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3211T-8
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYH945: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
EM3211T-8
Gross Volume
5274.135 in³
Gross Weight
71 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,1765RPM,3PH,60HZ,182T,3630M,OPSB,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Open, 3 HP, 1800 RPM, Frame Size 182T, Standard Mounting, 3 Phase, OPSB Enclosure, 200 V, 60 Hz (EM3211T-8)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
74 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
71 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9.7 A
Rated Efficiency
89.50 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 182T, Standard, 3 PH, OPSB, 200 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
K
Voltage Rating
200 V
Feature: IE3 Premium Efficiency combined with a 3 HP rating and 200 V 60 Hz operation on a 182T frame. Business Impact: Delivers lower energy costs, reduced heat, and cooler operation, which extend bearing life and cut cooling loads. Application: Ideal for continuous-duty pumps, fans, and conveyors in manufacturing lines. Feature: OPSB enclosure and rugged steel frame provide robust protection in dirty industrial environments. Business Impact: Increases equipment reliability and reduces maintenance interruptions. Application: Open-floor plants, material handling, and processing lines where dust and grime are common. Feature: Foot-mounted, horizontal mounting (F1) with a 182T frame and 1.13 in shaft diameter. Business Impact: Simplifies installation, retrofit, and alignment with existing OEM machinery. Application: Retrofit projects and new installations in conveyors and mixers. Feature: Direct On Line starting, 3-phase operation, and a rated current of 9.7 A with a service factor of 1.15. Business Impact: Reduces control hardware and simplifies electrical design while delivering reliable startup torque. Application: Industrial drives requiring straightforward electrical integration. Feature: NEMA Design Code B and 60 Hz, 1765 r/min nominal speed, and 4-pole configuration. Business Impact: Predictable torque characteristics and consistent performance across typical industrial loads. Application: Pumps, blowers, and general-purpose open motors in modern plants. Feature: Regreasable bearings (6206 / 6205) and robust insulation (Class F). Business Impact: Longer service life, lower maintenance costs, and improved uptime. Application: Continuous-duty environments with frequent cycling and load fluctuations. Together these features align with long-tail keywords like 3HP 200V motor, 182T frame open motor, OPSB enclosure motor, foot-mounted three-phase motor, and IE3 energy-efficient industrial motor to support performance and procurement discussions.
