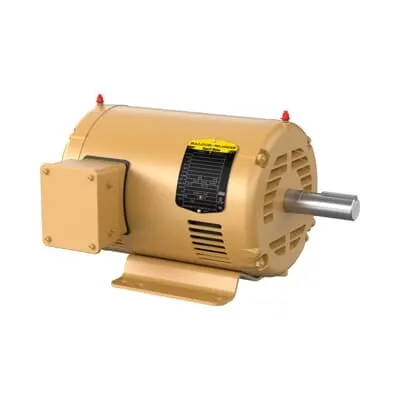

ABB 7BEM3218TA General Purpose Motor - Premium Efficiency
Part Number: 7BEM3218TA
Quick Summary
ABB 7BEM3218TA General Purpose Motor delivers reliable 5 HP drive for 3-phase industrial equipment. This open, general-purpose motor is well-suited for conveyors, pumps, fans, and other common plant loads. Engineers face challenges aligning energy efficiency with thermal performance and maintenance in open-frame designs; this model addresses those by combining a robust OPSB enclosure with durable, long-life components. With Premium Efficiency, NEMA Design B characteristics, and CSA/UR approvals, it balances performance and compliance. Its dual voltage (230/460 V) and 60 Hz operation support flexible integration across job sites, while the 184T frame and foot-mount configuration simplify retrofits and new installations alike.
Product Information
Extended Description
7BEM3218TA ABB: General Purpose Motor 5 Hp 230 V (EM3218TA)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184T,3640M,OPS
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3218TA
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYH827: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EM3218TA
Gross Volume
3496.049 in³
Gross Weight
84 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184T,3640M,OPSB,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Open, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EM3218TA)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
80 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
84 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.2 A | 6.6 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
J
Voltage Rating
230 V | 460 V
Feature → Premium Efficiency: The motor delivers 89.50% rated efficiency, reducing real-world energy consumption and lowering operating costs over the life of the equipment. This translates to measurable savings on running conveyors, mixers, and pump assemblies, especially in continuous-duty scenarios. Application: Ideal for material handling lines and process piping where energy cost reduction matters. Feature → Dual Voltage (230/460 V) @ 60 Hz: Enables flexible installation with existing drive systems and switchgear without additional transformers. Business Impact: Simplified procurement and faster commissioning, reducing downtime during plant upgrades. Application: Replacement motors and new builds across industrial facilities that utilize 3-phase power. Feature → OPSB Enclosure & Frame 184T: Provides rugged protection in open plant environments while maintaining straightforward maintenance access. Business Impact: Lower risk of overheating and contamination, enabling longer maintenance intervals and predictable uptime. Application: Open-floor manufacturing lines, packaging, and turnkey setups requiring robust protection. Feature → Direct On Line Start & Service Factor 1.15: Supports simple, hardware-light starting with a comfortable overload capacity for peak loads. Business Impact: Reduced starter hardware costs and improved motor responsiveness during startup transients. Application: Viewing on conveyors, fans, and pumps where rapid load acceptance is required. Feature → Regreasable Bearings (6206/6205 Ball) & Insulation Class F: Engineered for durable operation with scheduled maintenance, longer intervals between service. Business Impact: Lower total cost of ownership through extended life and reduced replacement cycles. Application: High-duty environments with modest maintenance windows. Feature → 5 HP, 1750 r/min, Frame 184T: Delivers consistent torque and speed control for standard mechanical drives. Business Impact: Predictable performance for belts, pulleys, and gear trains, enabling stable process control. Application: Industrial fans, pumps, and conveyors requiring reliable slow-to-mid speed operation.
