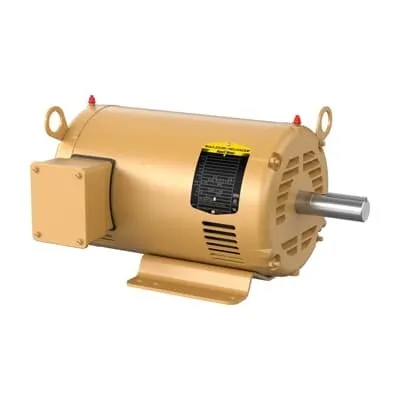

ABB 7BEM3219T General Purpose Motor - OPSB 60Hz
Part Number: 7BEM3219T
Quick Summary
General purpose motor applications thrive with ABB 7BEM3219T for standard 3-phase drives in manufacturing, packaging, and processing lines. This model delivers reliable power where uptime and durability matter most, helping you drive conveyors, pumps, and fans with confidence. It carries CSA, CSA EEV, and UR certifications, aligning with NEMA design standards for reliable, compliant operation. By combining 7.5 HP power, high efficiency, and a durable steel frame, it supports retrofit and new installations while reducing energy costs and maintenance across diverse facilities.
Product Information
Extended Description
7BEM3219T ABB: General Purpose Motor 7.5 Hp 230 V (EM3219T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,3480RPM,3PH,60HZ,184T,3632M,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3219T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
36LYG548: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EM3219T
Gross Volume
3496.049 in³
Gross Weight
74 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,3480RPM,3PH,60HZ,184T,3632M,OPSB,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Open, 7.5 HP, 3600 RPM, Frame Size 184T, Standard Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EM3219T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
89 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
74 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
17.4 A | 8.7 A
Rated Efficiency
88.50 %
Rated Speed
3480 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
7.5 HP, 3600 RPM, Frame Size 184T, Standard, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
L
Voltage Rating
230 V | 460 V
Feature: 7.5 HP, 230/460 V, three-phase open motor with 184T frame. Business Impact: Delivers robust, scalable power across North American and international plants, reducing the need for multiple frame variants. Application: Suitable for conveyors, pumps, fans in manufacturing and processing environments. Feature: OPSB enclosure. Business Impact: Protects windings and bearings in open environments, improving uptime and reducing field service. Application: Use in general industrial lines, packaging, and material handling. Feature: Efficiency and service factor. Business Impact: 88.5% rated efficiency and 1.15 SF lower energy consumption and improve load handling. Application: continuous operation in HVAC, pumps, fans. Feature: Physical compatibility. Business Impact: Foot-mounted, horizontal orientation, 184T frame and 1.13 in shaft diameter simplify installation and retrofit projects. Application: retrofit to existing lines or new installations with minimal downtime. Feature: Certifications and compliance. Business Impact: CSA, CSA EEV, UR, and NEMA design compatibility reduce procurement risk and streamline approvals. Application: procurement for North American manufacturing plants and ISO-compliant facilities.
