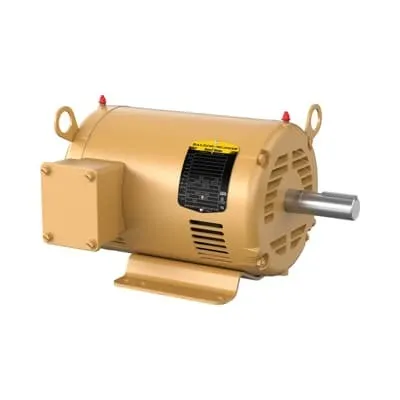

ABB 7BEM3219T-8 General Purpose Motor - OPSB Enclosure
Part Number: 7BEM3219T-8
Quick Summary
ABB 7BEM3219T-8 General Purpose Motor provides reliable 3‑phase power for open‑drive machinery across conveyors, pumps, and processing lines. Designers face downtime and misfit mounting when replacements don’t align with existing frames or foot-mount footprints. It carries CSA, UR, and CSA EEV certifications while delivering IE2 premium efficiency, meeting energy codes and safer operation. With a compact 184T frame, a rugged OPSB enclosure, and fast availability across multiple warehouses, this motor supports quick installation and long-term cost savings in demanding industrial environments.
Product Information
Extended Description
7BEM3219T-8 ABB: General Purpose Motor 7.5 Hp 200 V (EM3219T-8)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,3450RPM,3PH,60HZ,184T,3632M,O
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3219T-8
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYB101: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE2 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EM3219T-8
Gross Volume
3496.049 in³
Gross Weight
77 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
7.5HP,3450RPM,3PH,60HZ,184T,3632M,OPSB,F
Made To Order
No
Medium Description
General Purpose 3PH Open, 7.5 HP, 3600 RPM, Frame Size 184T, Standard Mounting, 3 Phase, OPSB Enclosure, 200 V, 60 Hz (EM3219T-8)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
91 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
77 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
20 A
Rated Efficiency
88.50 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
7.5 HP, 3600 RPM, Frame Size 184T, Standard, 3 PH, OPSB, 200 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
200 V
The 7.5 HP, 200 V, 60 Hz, 2-pole configuration delivers strong starting torque and stable operation for open-drive conveyors and pumps, while the 184T frame and foot-mounted design simplify retrofits and new installs. Business impact: reduced installation time and lower mechanical mismatch costs, enabling smoother plant commissioning and reduced downtime in continuous manufacturing. Application: open, general purpose 3PH systems with standard mounting needs and belt or pulley drives. The IE2 premium efficiency rating reduces energy consumption and heat generation, lowering operating costs and improving thermal management in continuous duty applications. Business impact: lower energy bills and extended motor life in high-cycle processes, providing a clear ROI. Application: HVAC-equipment drives, material handling, and process lines where regulatory compliance and energy performance matter. The OPSB enclosure provides robust indoor protection and ease of maintenance, increasing uptime in factory floors. Business impact: simplified service routines and safer mechanical interfaces, with straightforward replacement paths. Application: general industrial environments requiring reliable protection. The 184T frame, 1.13 in shaft, and 6206/6205 ball bearings support durable, low-friction operation with predictable wear patterns. Business impact: longer service intervals and reduced maintenance costs for conveyors, fans, and pumps. Application: legacy systems and modern controls where direct-on-line start and 60 Hz power are standard. Stocked at multiple warehouses with 0 day lead time further reduces project delays. Business impact: faster project ramp-up and improved supply chain resilience for OEMs and end users. Application: regional deployments and maintenance programs needing rapid access to replacement motors.
Get a Quick Quote for a ABB 7BEM3219T-8
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM3219T-8?
Enquire Now
FAQs
Yes. The ABB 7BEM3219T-8 uses a 184T frame and foot-mounted configuration with horizontal orientation (F1). It supports direct mounting to standard interfaces and is designed for open, OPSB environments. When replacing an older 184T motor, verify shaft diameter (1.13 inches) and mounting footprint to ensure a proper fit without rework.
This motor is a 3-phase, 200 V, 60 Hz line with a 2-pole design, delivering 7.5 HP at a rated speed of 3450 r/min. It offers IE2 premium efficiency and a service factor of 1.15, reducing energy costs and heat in continuous-duty applications. Rated current is 20 A, supporting standard panel and drive integrations.
The motor carries CSA, CSA EEV, and UR certification marks, validating electrical safety and reliability for North American markets. These approvals support compliance with procurement standards, facilitate safe integration into motor control centers, and ease inclusion in regulated manufacturing environments.
Lead Time is listed as 0 day, and the product is stocked at multiple warehouses (e.g., US, GB, SG, and others). This enables rapid deployment across regional facilities, minimizes supply chain delays, and supports just-in-time procurement for ongoing maintenance and expansion projects.
Warranty terms indicate standard policies for warranty-covered products with required returns of defective units. The motor uses standard bearings (6206 and 6205 Ball) and has a 60-minute duty time rating, so routine alignment, lubrication checks, and shaft seal inspections are recommended to maximize uptime and extend service life.
