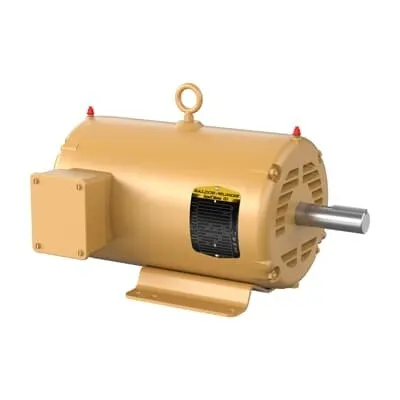

ABB 7BEM3220T General Purpose Motor - NEMA Premium
Part Number: 7BEM3220T
Quick Summary
ABB 7BEM3220T General Purpose Motor provides 1.5 HP power for 3-phase open-enclosure drives in manufacturing lines. This model helps simplify sourcing by offering a standard voltage range, frame size, and mounting configuration to fit common equipment. It carries CSA, CSA EEV, and UR certifications with Premium Efficiency (NEMA Premium), ensuring safety compliance and energy savings. The motor is stocked across multiple warehouses, with 0-day lead times, delivering rapid availability for uptime-critical projects. Designed for reliability in conveyors, pumps, and fans, it supports lean maintenance strategies and predictable total cost of ownership. Whether upgrading older lines or integrating new equipment, this motor's 184T frame and foot-mounting simplify retrofits.
Product Information
Extended Description
7BEM3220T ABB: General Purpose Motor 1.50 Hp 230 V (EM3220T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,855RPM,3PH,60HZ,184T,3642M,OP
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EM3220T
Certification Agency
CSA | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYB001: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EM3220T
Gross Volume
5274.135 in³
Gross Weight
82 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1.5HP,855RPM,3PH,60HZ,184T,3642M,OPEN,F1
Made To Order
No
Medium Description
General Purpose 3PH Open, 1.5 HP, 900 RPM, Frame Size 184T, Standard Mounting, 3 Phase, OPEN Enclosure, 230/460 V, 60 Hz (EM3220T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
8P
Number of Poles (High)
8
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1.50 Hp
Power Factor
60 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
82 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6 A | 3 A
Rated Efficiency
77 %
Rated Speed
855 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
1.5 HP, 900 RPM, Frame Size 184T, Standard, 3 PH, OPEN, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
900 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: 1.5 HP power with a 60 Hz, 230/460 V three-phase rating delivers reliable torque for mid-load machinery. Business Impact: Lower energy costs with premium efficiency and smoother operation reduces total cost of ownership. Application: Suitable for conveyors, pumps, and fans in general industrial settings. The design supports rapid starts and consistent performance in demanding environments. Feature: Frame 184T with 1.13 in shaft and horizontal mounting. Business Impact: Standardized mounting simplifies retrofit projects and cross-brand compatibility, cutting installation time. Application: Ideal for equipment upgrades on existing lines and new machinery footprints that require predictable dimensions. Feature: Open enclosure with standard drive-end flange and foot mounting. Business Impact: Easy maintenance access, fast belt and coupling alignment, and straightforward cooling for open-air operation. Application: Open-enclosure installations in manufacturing floors, packaging lines, and process systems. Feature: Premium Efficiency (NEMA Premium) and insulation class F. Business Impact: Energy savings, lower operating temperatures, and extended motor life reduce maintenance cycles and energy bills. Application: Continuous-duty drives in HVAC, material handling, and fluid handling where regulatory efficiency targets apply. Feature: Certifications and stock availability. Business Impact: CSA/CSA EEV and UR certification provide regulatory assurance, while multi-warehouse stocking with 0-day lead time enables rapid procurement. Application: Critical uptime projects across dispersed facilities and just-in-time manufacturing environments.
Get a Quick Quote for a ABB 7BEM3220T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM3220T?
Enquire Now
FAQs
Yes. The 7BEM3220T is rated for 230 V or 460 V, 3-phase operation at 60 Hz, making it suitable for common industrial drives. It features a 184T frame, 1.13 in shaft diameter, and a foot-mounted, horizontal orientation to simplify retrofit and new-installation planning across conveyors, pumps, and fans.
Key specs include a 1.5 HP output, 855 r/min rated speed, 184T frame size with 8 poles, and a shaft diameter of 1.13 in. Insulation class is F, bearings are 6206 Ball, and the drive end flange is Standard. These features support reliable performance in continuous-duty applications with straightforward maintenance.
Absolutely. The motor is designed for general purpose, open-enclosure service, making it well-suited for conveyors, pumps, and fans in manufacturing and processing plants. Its frame size and mounting options simplify retrofits, while the Premium Efficiency rating helps reduce energy costs in continuous operation.
This motor carries CSA, CSA EEV, and UR certifications, plus NEMA Premium efficiency. These marks indicate regulatory compliance, safer operation, and reduced energy consumption, helping you meet industry standards and environmental goals during audits and approvals.
Lead time is listed as 0 days with stock across multiple warehouses (e.g., EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU). Warranty terms follow standard return guidelines. The Premium Efficiency rating lowers operating costs over the motor’s life, delivering tangible ROI through energy savings and reduced cooling requirements.
