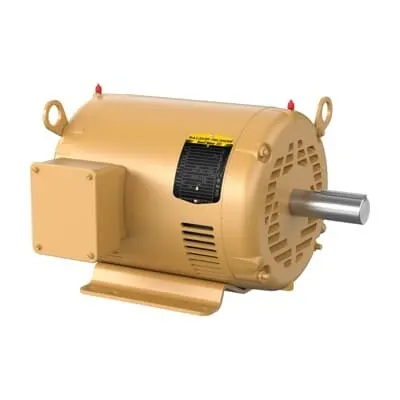

ABB 7BEM3314T-8 General Purpose Motor - IE2 Premium
Part Number: 7BEM3314T-8
Quick Summary
ABB 7BEM3314T-8 General Purpose Motor powers 3-phase drives in open-frame equipment and conveyors. In many facilities, motor mismatches drive downtime and elevated energy use. This model carries CSA, CSA EEV and UR certifications, supporting safe, compliant installation in North American and international panels. With IE2 premium efficiency and an OPSB enclosure, it delivers reliability and energy savings for packaging lines, material handling, pumps, and fans, while offering straightforward maintenance and proven performance.
Product Information
Extended Description
7BEM3314T-8 ABB: General Purpose Motor 15 Hp 200 V (EM3314T-8)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,3475RPM,3PH,60HZ,215T,3734M,OP
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3314T-8
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYB101: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE2 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EM3314T-8
Gross Volume
5274.135 in³
Gross Weight
131 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
15HP,3475RPM,3PH,60HZ,215T,3734M,OPSB,F1
Made To Order
No
Medium Description
General Purpose 3PH Open, 15 HP, 3600 RPM, Frame Size 215T, Standard Mounting, 3 Phase, OPSB Enclosure, 200 V, 60 Hz (EM3314T-8)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
90 %
Product Name
General Purpose 3PH Open
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
131 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
39.7 A
Rated Efficiency
90.20 %
Rated Speed
3475 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
15 HP, 3600 RPM, Frame Size 215T, Standard, 3 PH, OPSB, 200 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
200 V
Frame size and mounting compatibility (215T, foot mounted) streamline installation and replacement, reducing commissioning time and integration cost on existing line equipment. This translates to faster line startup and lower total cost of ownership for conveyor and pump applications. The OPSB enclosure provides robust protection in moderate washdown and dusty environments, improving uptime in manufacturing floors and warehousing operations. IE2 premium efficiency lowers energy consumption by reducing I2R losses, with a rated current of 39.7 A at 200 V, delivering tangible annual energy savings on long-run conveyors and fans. Direct On Line starting simplifies control schemes and minimizes upfront drive equipment, delivering reliable starts for pumps and fans while reducing maintenance complexity. Certifications (CSA, CSA EEV, UR) and a NEMA design B structure align with safety standards and common industrial practices, supporting regulatory compliance and seamless integration in electrical panels. Lead time is 0 day and stock is available at multiple warehouses, enabling rapid deployment and improved service levels for global supply chains.
Get a Quick Quote for a ABB 7BEM3314T-8
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM3314T-8?
Enquire Now
FAQs
Yes. This is a 200 V, 60 Hz, 3-phase motor designed for direct-on-line starting in standard North American electrical environments. It features a 215T frame, OPSB enclosure, and 3475 r/min, ensuring straightforward replacement and quick integration with common couplings and drive systems.
The motor achieves IE2 premium efficiency with a rated efficiency of approximately 90.20%. It draws about 39.7 A at 200 V under full-load conditions, delivering reliable performance for continuous-duty applications such as conveyors, pumps, and fans while helping manage operating costs.
Yes. With 2 poles, 3475 r/min, and continuous-duty suitability, the 7BEM3314T-8 is well-suited for high-cycle conveyor lines and pump assemblies. The OPSB enclosure provides environmental protection, and the 60 Hz operation matches standard industrial power distribution for uptime and predictable performance.
The motor carries CSA, CSA EEV, and UR certifications, with a NEMA design B frame and insulation class F. These certifications support safe operation in diverse markets and simplify integration into compliant electrical panels and motor control centers.
Warranty terms indicate products under warranty must be returned. The motor is stocked at multiple warehouses with 0-day lead time, enabling rapid fulfillment and minimized downtime when replacing failed units or scaling across multiple lines.
