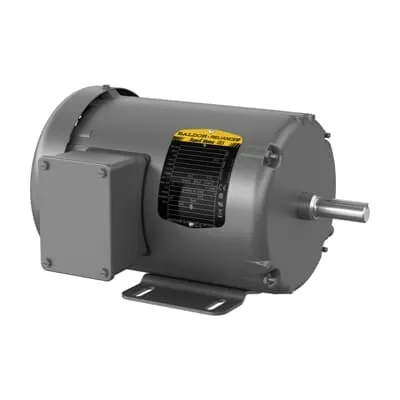

ABB 7BEM3545-57 General Purpose Motor - IE3
Part Number: 7BEM3545-57
Quick Summary
General Purpose Motor delivers 1 HP at 230 V for 3-phase industrial equipment in manufacturing. This compact, standardized motor supports quick replacements and predictable performance across multiple lines, helping keep production moving even during line changes. The design targets common pain points like energy waste, downtime, and retrofit risk. With IE3 efficiency, CE and CSA certifications, plus UR and WEEE compliance, this motor is built for regulated environments and global sourcing. Its Baldor-Reliance heritage supports easy spares, consistent performance, and a lower total cost of ownership when upgrading aging equipment. Ideal for conveyors, pumps, fans, and generalmachinery in OEM and aftermarket applications.
Product Information
Extended Description
7BEM3545-57 ABB: General Purpose Motor 1 Hp 230 V (EM3545-57)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,2850RPM,3PH,50HZ,56,3516M,TEFC,
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EM3545-57
Certification Agency
CE | CSA | IE3 | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYE2941: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
50 Hz
Global Commercial Alias
EM3545-57
Gross Volume
3496.049 in³
Gross Weight
35 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
B
Invoice Description
1HP,2850RPM,3PH,50HZ,56,3516M,TEFC,F1,N
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 1 HP, 3000 RPM, Frame Size 56, Standard Mounting, 3 Phase, TEFC Enclosure, 230/400 V, 50 Hz (EM3545-57
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
87 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
35 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.8 A | 1.6 A
Rated Efficiency
82.50 %
Rated Speed
2850 r/min
Replaced Product ID (OLD)
7B35E2941L462G1
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.63 in
Short Description
1 HP, 3000 RPM, Frame Size 56, Standard, 3 PH, TEFC, 230/400 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3000 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 400 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
IE3 efficiency and 1 HP output reduce energy consumption and operating costs, delivering tangible annual savings in continuous operation environments. Business impact: lower utility bills and improved sustainability metrics for manufacturing facilities; application: pumps, blowers, and general purpose drives in process lines. TEFC enclosure guards internal components, extending service life in dusty or humid environments; impact: reduced maintenance need and longer intervals between repairs; application: material handling and packaging lines with exposed machinery. 56-frame footprint and 230/400 V operation ensure broad compatibility; impact: faster upgrades and simpler electrical retrofits; application: retrofits on existing equipment and new line builds. Direct-on-line starting and 3-phase, 2-pole design enable straightforward installation and minimal soft-start requirements; impact: reduced control wiring, simpler commissioning, and quicker startup in bottleneck processes; application: fans, pumps, and small conveyors across industrial spaces. Foot-mounted, horizontal mounting (F1) and standard drive end flange support quick, vibration-resistant installation; impact: reliable operation on crowded shop floors and easier alignment with existing bases; application: OEM assemblies and retrofit projects. Ambient temperature rating of 40 °C and insulation class B provide dependable performance in typical plant environments; impact: predictable performance and compliance with electrical safety standards for continuous duty. Stocked at multiple warehouses, with 0-day lead time in many regions; impact: faster procurement cycles, improved production planning, and reduced downtime for critical equipment.
Get a Quick Quote for a ABB 7BEM3545-57
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM3545-57?
Enquire Now
FAQs
Is the ABB 7BEM3545-57 compatible with standard 56-frame, foot-mounted bases and horizontal mounting? This motor is designed for a 56-frame footprint, foot-mounted installation, and a standard drive end flange (F1). It integrates smoothly with existing bases and supports quick retrofit onto conveyors, pumps, or fans in typical 3PH industrial setups.
What are the key electrical specifications and efficiency rating for this motor? It delivers 1 HP at 230/400 V, 50 Hz, 3-phase, with a rated current of 2.8 A / 1.6 A and an efficiency of 82.50% (IE3). The motor uses a TEFC enclosure, NEMA B insulation, and Direct-on-Line starting for straightforward commissioning.
Can this motor handle continuous-duty applications in manufacturing environments? Yes. It is rated for Continuous duty (Type D) with a service factor of 1.25 and a 60-minute duty time, making it suitable for continuous operation in pumps, fans, conveyors, and other general-purpose loads.
What certifications and regulatory compliances does this motor carry? The EM3545-57 meets CE, CSA, IE3, UR, and WEEE requirements, ensuring safety, efficiency, and regulatory readiness for international installations and compliance-heavy facilities.
What is the typical lead time and stock availability for this motor? Lead time is stated as 0 day, with stock illustrated across multiple warehouses, including US and international locations. This supports rapid procurement, reduced downtime, and faster project execution for upgrade programs.
