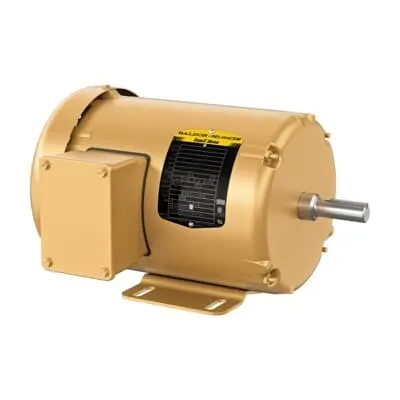

ABB 7BEM3555 General Purpose Motor - IE3 Premium
Part Number: 7BEM3555
Quick Summary
ABB 7BEM3555 General Purpose Motor is a rugged 2 HP, 230 V three-phase solution designed for reliable operation in pumps, fans, conveyors, and general machinery. This model is optimized to reduce downtime and maintenance costs in demanding industrial environments. With a TEFC enclosure and a 56 frame, it fits compact spaces while protecting critical components from dust and moisture. The motor carries key North American certifications (CSA, UR, CSA EEV) and aligns with NEMA Design B standards, supporting safe integration across diverse facilities. In addition to premium efficiency, the design offers straightforward installation and predictable performance, delivering tangible business value through energy savings and reduced total cost of ownership.
Product Information
Extended Description
7BEM3555 ABB: General Purpose Motor 2 Hp 230 V (EM3555)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,3490RPM,3PH,60HZ,56,3526M,TEFC,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3555
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYT696: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
EM3555
Gross Volume
3496.049 in³
Gross Weight
42 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,3490RPM,3PH,60HZ,56,3526M,TEFC,F1,N
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 2 HP, 3600 RPM, Frame Size 56, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM3555)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
88 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
42 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5 A | 2.5 A
Rated Efficiency
85.50 %
Rated Speed
3490 r/min
Replaced Product ID (OLD)
7B35T696M774E7
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
2 HP, 3600 RPM, Frame Size 56, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
M
Voltage Rating
230 V | 460 V
IE3 premium efficiency reduces energy consumption in continuous-duty applications, delivering measurable savings on electrical costs for pumps, fans, and conveyors. This efficiency translates to faster ROI on new equipment and lower running costs over the motor’s life. TEFC enclosure and 56-frame geometry provide rugged protection and a compact footprint, enabling simpler mounting in restricted spaces and improved reliability in dusty or harsh environments. Regreasable bearings extend service intervals, lowering maintenance labor and part costs while preserving peak torque and smooth operation during high-load cycles. Direct On Line starting minimizes control system complexity and avoids additional soft-starter equipment on standard duty lines, reducing upfront capital expenditure and integration risk. Stocked at multiple warehouses with 0-day lead time improves project timelines and spare-part availability, cutting downtime during replacements and upgrades. Compliance with CSA, UR, and CSA EEV marks ensures regulatory alignment for US-based installations and audits, while NEMA Design B compatibility guarantees predictable torque curves for typical industrial loads. This combination supports a wide range of applications, including packaging lines, process equipment, and general purpose drives, with confidence in performance, longevity, and total cost of ownership.
Get a Quick Quote for a ABB 7BEM3555
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM3555?
Enquire Now
FAQs
Yes. The 7BEM3555 is designed as a foot-mounted, horizontal mounting motor with a frame size of 56. It operates on 3-phase power at 60 Hz and is suitable for direct-on-line starting, simplifying control wiring and mounting in conveyors, pumps, and general machinery. Ensure mounting surface and alignment meet the NEMA Design B torque curve for optimal performance.
The motor delivers 2 HP with a rated speed around 3490 r/min (synchronous 3600 r/min). It supports 230 V or 460 V, 3-phase power at 60 Hz, with IE3 premium efficiency and a TEFC enclosure. Rated current is 5 A | 2.5 A, and service factor is 1.15, making it suitable for continuous duty in typical industrial loads.
Yes. Its continuous-duty design, 60-minute duty time rating, and IE3 efficiency help maintain consistent output while reducing energy usage. With a rugged TEFC enclosure and 56 frame, it handles demanding environments and supports reliable operation in conveyors, pumps, and fans commonly found in manufacturing lines.
The 7BEM3555 is certified with CSA, CSA EEV, and UR marks, aligning with North American electrical safety and energy standards. It also conforms to NEMA Design B, TEFC enclosure requirements, and uses a 56-frame, foot-mounted design, ensuring compatibility with common industrial control panels and installations.
Maintenance is reduced by regreasable bearings and a robust TEFC design that resists dust and moisture ingress. With 0-day lead time stock and reliable energy efficiency (IE3), the motor lowers downtime and operating costs, delivering a favorable return on investment on new equipment or replacement projects.
