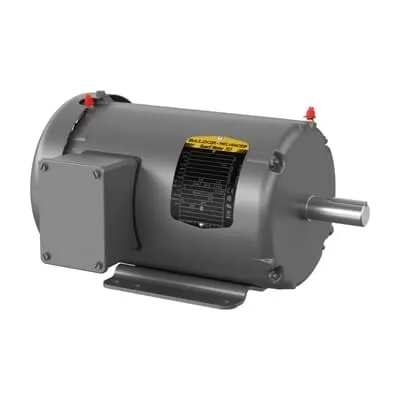

ABB 7BEM3555T-57 General Purpose Motor - IE3
Part Number: 7BEM3555T-57
Quick Summary
7BEM3555T-57 general purpose motor is designed to deliver reliable 2 HP performance for three-phase industrial drives, including pumps, conveyors, and fans. This ABB motor operates at 230/400 V, 50 Hz, with a TEFC enclosure for tough environments and a robust 143T frame that fits standard bases. If you’re facing rising energy costs or downtime, this motor helps address those pain points with consistent torque and long bearing life. Certified IE3 efficiency and CE/CSA compliance support energy and safety requirements, while stock availability across multiple warehouses improves procurement velocity. For project pipelines and maintenance planning, this model offers a dependable balance of performance and total cost of ownership.
Product Information
Extended Description
7BEM3555T-57 ABB: General Purpose Motor 2 Hp 230 V (EM3555T-57)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,2900RPM,3PH,50HZ,145T,3532M,TEF
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EM3555T-57
Certification Agency
CE | CSA | IE3 | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYTT638: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
143
Frequency (f)
50 Hz
Global Commercial Alias
EM3555T-57
Gross Volume
3496.049 in³
Gross Weight
50 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
B
Invoice Description
2HP,2900RPM,3PH,50HZ,145T,3532M,TEFC,F1
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 2/1.5 HP, 3000 RPM, Frame Size 143T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/400 V, 50 Hz (EM3
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
88 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
50 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5 A | 2.9 A
Rated Efficiency
84.20 %
Rated Speed
2900 r/min
Replaced Product ID (OLD)
7B35TT638Q064G1
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.88 in
Short Description
2/1.5 HP, 3000 RPM, Frame Size 143T, Standard, 3 PH, TEFC, 230/400 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3000 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 400 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
High IE3 efficiency reduces energy consumption and operating costs for continuous operation on pumps and conveyors, delivering measurable return on investment while meeting energy regulations. The 230/400 V, 50 Hz three-phase rating ensures quick integration with common plant electrical distributions, minimizing wiring complexity and startup time. TEFC enclosure provides a rugged barrier against dust and moisture, lowering routine maintenance needs and extending service intervals in dirty or humid environments. The 143T frame size, 2 HP output, and 2900 rpm rated speed deliver ample torque for belt-driven equipment, enabling reliable startup and steady operation in dynamic loads. A foot-mounted base and horizontal F1 mounting position simplify installation, alignment, and retrofit projects, reducing commissioning time. The 0.88 in shaft diameter and 6205 ball bearings target durable performance under continuous duty, while the 60-minute duty time supports short-term overloads without compromising longevity. With CE, CSA, IE3, UR, and WEEE certifications, compliance and environmental responsibility are built in, easing procurement audits. In practice, engineers benefit from compatibility with standard dimension sheets and dimensioned connections, lowering the risk of misfit or replacement delays during plant upgrades. Long-tail keywords: IE3 motor, 3-phase 230/400 V motor, frame size 143T motor, TEFC enclosed motor, foot-mounted 3PH motor, belt-driven conveyors, pump applications, industrial fans, 50 Hz motor, rigid bearing design, direct-on-line starting.
