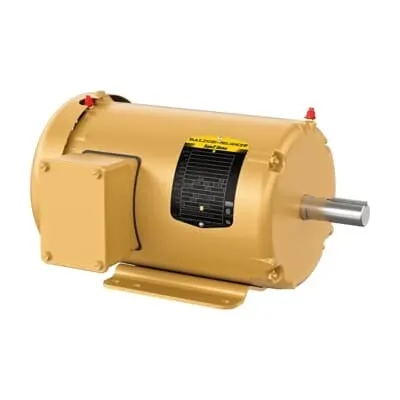

ABB 7BEM3558T-5 General Purpose Motor - IE3 575V
Part Number: 7BEM3558T-5
Quick Summary
ABB 7BEM3558T-5 is a general-purpose, three-phase motor for reliable continuous operation in manufacturing and material handling environments. It delivers 2 HP at 575 V with a 1764 r/min nominal speed and a robust TEFC enclosure. Engineers often struggle with energy waste, downtime, and fitment issues when integrating motors into existing lines. This model combines premium IE3 efficiency with CSA, EEV, and UR certifications to help meet regulatory requirements while reducing operating costs. The 145T frame, foot-mounted design, and 3-phase, 60 Hz performance support straightforward installation and consistent performance across typical industrial loads. By selecting a motor with regreasable bearings and NEMA design alignment, maintenance cycles lengthen and total cost of ownership improves for conveyors, pumps, and fans.
Product Information
Extended Description
7BEM3558T-5 ABB: General Purpose Motor 2 Hp 575 V (EM3558T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1764RPM,3PH,60HZ,145T,3528M,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3558T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYAA001: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
EM3558T-5
Gross Volume
3496.049 in³
Gross Weight
46 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1764RPM,3PH,60HZ,145T,3528M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 2 HP, 1800 RPM, Frame Size 145T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (EM3558T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
80 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
46 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.15 A
Rated Efficiency
86.50 %
Rated Speed
1764 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145T, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
575 V
Feature → Business Impact → Application: IE3 premium efficiency reduces energy consumption and operating costs across daily production runs, supporting sustainability goals and lower electricity bills in continuous-duty applications. This is particularly beneficial for conveyors, pumps, and fans operating at 60 Hz in mixed-load environments. Feature → Business Impact → Application: TEFC enclosure provides a robust barrier against dust, moisture, and contaminants, extending bearing life and reducing downtime in harsh factory floors. Use this in material handling lines and process equipment where washdowns or humidity are common. Feature → Business Impact → Application: 145T frame with foot mounting enables straightforward, space-conscious installation on nearby machinery, minimizing retrofit complexity and enabling quick line integrations in existing plants. Feature → Business Impact → Application: Regreasable bearings lower maintenance costs and extend service intervals, ideal for high-cycle drives such as conveyors and pump assemblies. Feature → Business Impact → Application: Direct-on-line starting simplifies electrical integration and reduces initial drive cost, suitable for initial installations and modernizing legacy lines in machine shops and packaging lines. Feature → Business Impact → Application: 4-pole design delivering 1764 r/min at 60 Hz ensures predictable speed control for belt-driven equipment and process control, supporting reliable operation in CNCs, fans, and cutting cells.
