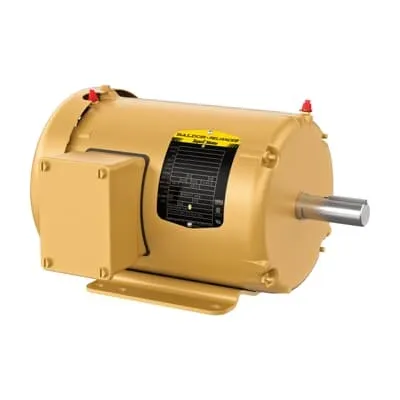

ABB 7BEM3558T-8 General Purpose Motor - TEFC IE3 Premium
Part Number: 7BEM3558T-8
Quick Summary
ABB 7BEM3558T-8 is a general purpose three-phase motor designed for reliable performance in standard industrial drives. When downtime or rising energy costs impact production, selecting a motor with robust efficiency and durable construction becomes essential. This model features IE3 Premium efficiency, a TEFC enclosure, and certifications including CSA | CSA EEV | UR to support compliance across regulatory environments. With stock available across multiple warehouses and zero-day lead times, it streamlines procurement and reduces project risk. Its compatibility with common frame and mounting standards also supports faster replacement and lower total cost of ownership for automation and manufacturing operations.
Product Information
Extended Description
7BEM3558T-8 ABB: General Purpose Motor 2 Hp 200 V (EM3558T-8)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1765RPM,3PH,60HZ,145T,3528M,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3558T-8
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYA001: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
EM3558T-8
Gross Volume
3496.049 in³
Gross Weight
46 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1765RPM,3PH,60HZ,145T,3528M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 2 HP, 1800 RPM, Frame Size 145T, Standard Mounting, 3 Phase, TEFC Enclosure, 200 V, 60 Hz (EM3558T-8)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
75 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
46 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6.7 A
Rated Efficiency
86.50 %
Rated Speed
1755 r/min
Replaced Product ID (OLD)
7B35A001G112G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145T, Standard, 3 PH, TEFC, 200 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
200 V
Feature → Business Impact → Application: IE3 Premium efficiency reduces operating costs by delivering higher energy savings over the motor’s lifetime, supporting long-term cost-per-hour reduction in conveyors, pumps, and fans. In practice, this translates to measurable ROI in continuous‑duty manufacturing lines where energy spend is a major concern. Feature → Business Impact → Application: TEFC enclosure protects internals from dust, moisture, and particles, improving uptime in harsh factory environments and lowering maintenance cycles for HVAC, extruders, and process equipment. Feature → Business Impact → Application: 3-phase, 60 Hz operation at 200 V with a 2 HP rating and a frame size of 145T offers straightforward replacement in existing Baldor‑Reliance or standard motor trains, reducing installation time and wiring complexity. Feature → Business Impact → Application: Direct On Line starting and a service factor of 1.15 support reliable startup and continuous operation in belt conveyors, pumps, and material handling systems, minimizing startup torque issues. Feature → Business Impact → Application: Regreasable bearings (6205, 6203 ball) along with a robust TEFC design extend bearing life and reduce maintenance costs in high‑cycle applications. Feature → Business Impact → Application: Stocked at multiple warehouses with 0 day lead time, minimum order quantity 1 piece, and standard mounting (Foot Mounted, Horizontal, F1) simplify procurement and fast-track installation in OEM and after-sales contexts.
Get a Quick Quote for a ABB 7BEM3558T-8
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM3558T-8?
Enquire Now
FAQs
Yes. The 7BEM3558T-8 uses a 145T frame with foot-mounted base type and horizontal mounting (F1), designed for direct replacement in typical Baldor-Reliance drive trains and existing equipment footprints.
Key specs include 200 V three-phase voltage, 60 Hz frequency, 2 HP output, rated current ~6.7 A, rated speed 1755 r/min, and efficiency around 86.5% (IE3). These parameters support reliable operation in standard industrial drives.
Yes. It offers a continuous duty profile with a service factor of 1.15, NEMA B design, and a TEFC enclosure, making it suitable for continuous operation in conveyors, pumps, fans, and similar equipment.
The motor carries IE3 Premium Efficiency, and certifications including CSA, CSA EEV, and UR, ensuring regulatory compliance across North American and international markets.
Maintenance is simplified by regreasable bearings and a robust TEFC design, reducing downtime. Stock availability and low lead times accelerate projects, delivering quicker ROI through energy savings and higher reliability.
