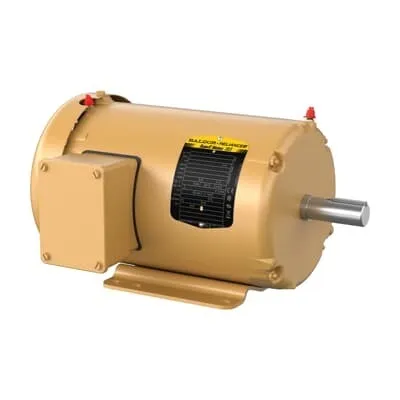

ABB 7BEM3559T General Purpose Motor 3PH Enclosed - IE3 Premium Efficiency
Part Number: 7BEM3559T
Quick Summary
ABB 7BEM3559T general purpose motor delivers 3 HP, 230 V operation for general industrial equipment. Engineers often face challenges with energy efficiency, mounting compatibility, and downtime in demanding environments. This model aligns with IE3 premium efficiency, a TEFC enclosure, and a 143T frame to simplify installation and improve reliability. It is designed for 3-phase systems at 60 Hz and dual voltage 230/460 V, supporting seamless OEM integration and long-term maintenance planning. By combining robust mechanicals with scalable electrical performance, it helps reduce operating costs while ensuring consistent output across a wide range of applications.
Product Information
Extended Description
7BEM3559T ABB: General Purpose Motor 3 Hp 230 V (EM3559T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,145T,3532M,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3559T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYTT638: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
143
Frequency (f)
60 Hz
Global Commercial Alias
EM3559T
Gross Volume
3496.049 in³
Gross Weight
49 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,3450RPM,3PH,60HZ,145T,3532M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 3 HP, 3600 RPM, Frame Size 143T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM3559T
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
143T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
92 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
49 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.2 A | 3.6 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35TT638Q060G2
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
3 HP, 3600 RPM, Frame Size 143T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
L
Voltage Rating
230 V | 460 V
Feature: IE3 premium efficiency reduces energy consumption and heat generation. Business Impact: Lower running costs and cooler operation extend motor life in continuous duty environments. Application: conveyors, pumps, and fans in automated lines benefit from sustained efficiency gains. Feature: TEFC enclosure and steel frame provide rugged protection. Business Impact: Improved reliability in dusty or humid factory floors minimizes unplanned downtime. Application: material handling and process cooling systems in harsh environments. Feature: 143T frame with foot-mounted configuration enables quick retrofits. Business Impact: Faster installation, standardized mounting, and reduced integration costs. Application: OEM equipment upgrades and retrofits in packaging and textile machinery. Feature: Regreasable bearings and DOL starting support simple maintenance. Business Impact: Lower maintenance costs and predictable service schedules. Application: continuous-duty fans and blower assemblies with minimal lubrication downtime. Feature: Service Factor 1.15 and robust shaft design offer overload tolerance. Business Impact: Enhanced resilience to transient loads and motor start-up surges. Application: variable torque loads in pumps and fans. Feature: Dual voltage 230/460 V with 60 Hz operation ensures compatibility with North American power systems. Business Impact: Flexible sourcing and reduced inventory needs for multi-variant sites. Application: general purpose automation applications across multiple ramp-up scenarios.
Get a Quick Quote for a ABB 7BEM3559T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM3559T?
Enquire Now
FAQs
Yes. The 7BEM3559T is a dual-voltage 230/460 V, 3-phase motor designed for 60 Hz operation, enabling seamless integration with common North American power systems and simplifying spare part planning for mixed fleets.
It uses a 143T frame size with a foot-mounted configuration and horizontal mounting orientation. This supports straightforward installations and compatibility with standard motor bases in conveyors, pumps, and fans.
The motor features IE3 premium efficiency, a TEFC enclosure, and a NEMA design code B. It aligns with CSA/UR/CSA EEV certifications, providing compliance for regulated industrial environments.
The model uses regreasable bearings and Direct-On-Line starting, reducing downtime and maintenance complexity. Plan for periodic lubrication and standard motor servicing to maximize uptime in continuous duty applications.
With IE3 efficiency and a 1.15 service factor, the motor delivers energy savings and the ability to handle overloads without immediate replacement. Coupled with easy retrofit and reliable TEFC protection, it lowers lifecycle costs for conveyors and pumps.
