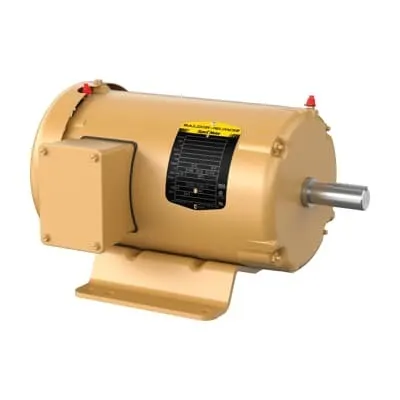

ABB 7BEM3603 U-Frame Motor - CSA CSA EEV UR Certified
Part Number: 7BEM3603
Quick Summary
ABB 7BEM3603 motor delivers reliable 1 HP, 230/460 V U-frame drive for general purpose industrial equipment. This compact, three-phase motor fits standard footprints while delivering consistent torque across varying loads. Many teams struggle to source a compact, high-efficiency motor that meets footprint constraints and regulatory requirements without costly downtime. The unit carries CSA, CSA EEV, and UR certifications, aligning with North American safety standards and enabling fast acceptance testing in regulated environments. With IE3 premium efficiency and TEFC enclosure, it minimizes energy waste and protects internal components. For manufacturers seeking dependable performance with straightforward installation and predictable maintenance, this motor streamlines procurement and reduces total cost of ownership.
Product Information
Extended Description
7BEM3603 ABB: U-Frame 1 Hp 230 V (EM3603)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,182,3520M,TEFC
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3603
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYL108: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
EM3603
Gross Volume
3496.049 in³
Gross Weight
38 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1HP,1770RPM,3PH,60HZ,182,3520M,TEFC,F1,N
Made To Order
No
Medium Description
U-Frame, 1 HP, 1800 RPM, Frame Size 182, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM3603)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
69 %
Product Name
U-Frame
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
38 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.2 A | 1.6 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
1 HP, 1800 RPM, Frame Size 182, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The U-frame, 1 HP, 60 Hz motor delivers a compact footprint (Frame Size 182) that fits tight spaces in conveyors, pumps, and fans, reducing enclosure footprint and installation time. This translates to measurable space savings and faster commissioning on a range of machines. Feature → Business Impact → Application: IE3 premium efficiency lowers operating costs by reducing real power losses during continuous duty, supporting energy-reduction goals in manufacturing lines and process equipment. Application: ideal for high-duty-cycle drives where energy costs accumulate over shift rotations and week-to-week production targets. Feature → Business Impact → Application: TEFC enclosure and NEMA design B provide robust protection in dirty or borderline ambient conditions, enabling long service intervals and lower maintenance costs in packaging, material handling, and water-waste systems. Feature → Business Impact → Application: Direct On Line starting and a 4-pole design (1770 rpm) deliver reliable startup torque with simple drive integration, minimizing downtime during line changes or shift transitions in food and beverage or chemical processing. Feature → Business Impact → Application: Foot-mounted, horizontal mounting (F1) and standardized bolt patterns simplify retrofits and new installs alike, reducing installation risk and enabling quick coupling to belts, gears, and pulleys across automation lines. Feature → Business Impact → Application: Certifications (CSA, CSA EEV, UR) ensure regulatory acceptance in critical markets and streamline inspection cycles, supporting lean procurement and faster supplier qualification for OEMs in packaging, textile, and metals processing. The combination of Frame 182, 0.88 in shaft diameter, and 60 Hz operation makes this motor a reliable, compatible choice for multi-brand systems while preserving spare-part compatibility and inventory planning. Long-term, the unit supports predictable ROI through reduced energy use, simpler integration, and durable performance in continuous-duty applications.
