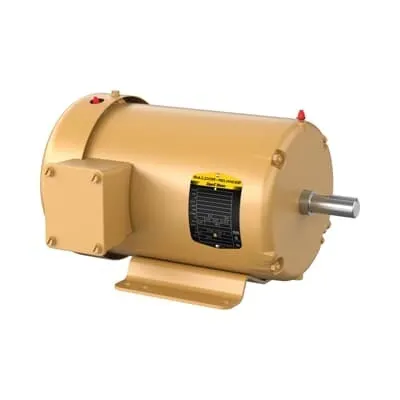

ABB 7BEM3607 U-Frame Motor - CSA/CSA EEV/UR Certified
Part Number: 7BEM3607
Quick Summary
ABB 7BEM3607 U-Frame Motor delivers reliable 1.5 HP performance for 3-phase industrial drives across conveyors, pumps, and general machinery. This compact, TEFC-enclosed motor is designed to fit standard frame sizes while delivering rugged reliability in demanding environments. Operators often struggle with downtime, mismatched voltage, or inefficient equipment; this model addresses those pain points with a universal 230/460 V configuration and a robust 60 Hz, 1165 rpm specification. It carries CSA, CSA EEV, and UR listings, plus NEMA design B and IE3 premium efficiency, ensuring compliance and energy savings. For procurement teams, the combination of readily available stock at multiple warehouses and a non-MTO policy reduces lead times and simplifies maintenance planning, with predictable maintenance cycles and warranty terms.
Product Information
Extended Description
7BEM3607 ABB: U-Frame 1.5 Hp 230 V (EM3607)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1165RPM,3PH,60HZ,184,3632M,TE
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3607
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYA011: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EM3607
Gross Volume
5274.135 in³
Gross Weight
72 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1.5HP,1165RPM,3PH,60HZ,184,3632M,TEFC,F1
Made To Order
No
Medium Description
U-Frame, 1.5 HP, 1200 RPM, Frame Size 184, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM3607)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
67 %
Product Name
U-Frame
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
72 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.8 A | 2.4 A
Rated Efficiency
87.50 %
Rated Speed
1165 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1200 RPM, Frame Size 184, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: U-Frame, frame size 184, and foot-mounted design. Business Impact: Delivers a compact footprint with straightforward alignment, reducing installation time and spare-parts complexity. Application: Ideal for tight-line layouts in conveyors, pumps, and machine tools. Feature: TEFC enclosure with 60 Hz, 230/460 V, 3-phase configuration. Business Impact: Protects windings from dust and moisture while enabling simple procurement across voltages. Application: Suitable for harsh factory environments and multi-voltage sourcing. Feature: IE3 premium efficiency (87.5%) and power factor of 0.67. Business Impact: Lowers energy consumption, lowers operating costs, and supports regulatory compliance in energy programs. Application: Beneficial for high-demand automation lines with long-term ROI. Feature: Direct On Line starting, NEMA Design B, continuous duty. Business Impact: Simplifies control schemes, provides reliable starts, and reduces maintenance due to robust design. Application: Fits continuous-duty conveyors and process equipment. Feature: Mechanical and dimensional compatibility ( shaft 0.88 in, frame 184, horizontal mounting). Business Impact: Eases pulley/belt and coupling choices, accelerates installation, and minimizes downtime. Application: Widely compatible with standard components in industrial automation. Feature: Certifications and material readiness (F insulation, TEFC, 40 °C ambient, 3-phase 60 Hz). Business Impact: Ensures compliance with CSA/EEV/UR, NEMA B, and robust operation in typical plant temperatures. Application: Suitable for US-based assembly lines and machine control cabinets. Insight: With dimension data like 36LYA011 and stock-at-warehouses positioning (US, China, multiple US warehouses), procurement and maintenance planning become predictable for OEMs and aftermarket service teams.
