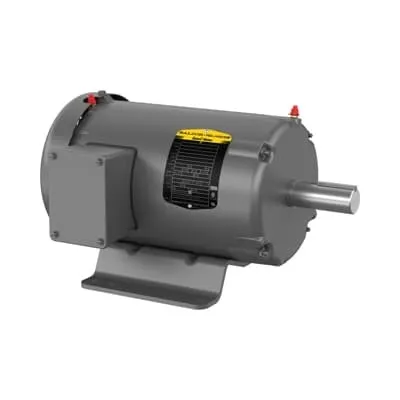

ABB 7BEM3610T-57 General Purpose Motor - IE3
Part Number: 7BEM3610T-57
Quick Summary
ABB 7BEM3610T-57 General Purpose Motor is a versatile 3 HP AC motor designed for continuous-duty service in pumps, fans, and conveyors. Engineers often struggle to balance energy efficiency, footprint, and mounting compatibility in compact installations. This model delivers IE3 energy efficiency, a TEFC enclosure, and a robust 182T frame with dual-voltage 230/400 V operation for 50 Hz systems, backed by CE, CSA, UR, and WEEE certifications for global compliance. Stock is available across multiple warehouses with zero lead time, enabling fast deployment and predictable maintenance costs. For reliable, cost-efficient performance in demanding automation environments, this motor aligns with both engineering and procurement objectives.
Product Information
Extended Description
7BEM3610T-57 ABB: General Purpose Motor 3 Hp 230 V (EM3610T-57)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,2850RPM,3PH,50HZ,182T,3534M,TEF
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EM3610T-57
Certification Agency
CE | CSA | IE3 | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYL100: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
50 Hz
Global Commercial Alias
EM3610T-57
Gross Volume
3496.049 in³
Gross Weight
55 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
3HP,2850RPM,3PH,50HZ,182T,3534M,TEFC,F1
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 3/2.2 HP, 3000 RPM, Frame Size 182T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/400 V, 50 Hz (EM3
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
88 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
55 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.3 A | 4.2 A
Rated Efficiency
85.90 %
Rated Speed
2850 r/min
Replaced Product ID (OLD)
7B35L100L461G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
3/2.2 HP, 3000 RPM, Frame Size 182T, Standard, 3 PH, TEFC, 230/400 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3000 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 400 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature: TEFC enclosure provides robust protection against dust and moisture, reducing winding damage and extending service intervals. Business impact: lower maintenance costs and less unscheduled downtime in harsh industrial environments. Application: conveyors and pumps in manufacturing or processing facilities. Feature: IE3 energy efficiency lowers operating costs by reducing electricity consumption over the motor’s life. Business impact: measurable ROI through energy savings and lower carbon footprint. Application: HVAC pumps, fans, and process cooling systems. Feature: 182T frame and foot-mounted design simplify installation and retrofit with standard bases. Business impact: quicker commissioning and lower installation costs. Application: retrofits and new builds requiring fast, compliant mounting. Feature: Dual-voltage 230/400 V and 50 Hz support enables global deployment without transformers. Business impact: reduced stocking complexity and procurement time. Application: multi-region automation projects and OEM deployments. Feature: Direct-on-line starting and 3-phase operation provide reliable torque with minimal drive hardware. Business impact: simplified control architecture and reduced soft-start equipment. Application: continuous-duty duty-controlled lines in conveyors and pumps. Feature: NEMA Design B torque characteristics and robust 3 HP rating deliver consistent, predictable performance. Business impact: improved process stability and longer motor life. Application: general purpose automation tasks in continuous service.
