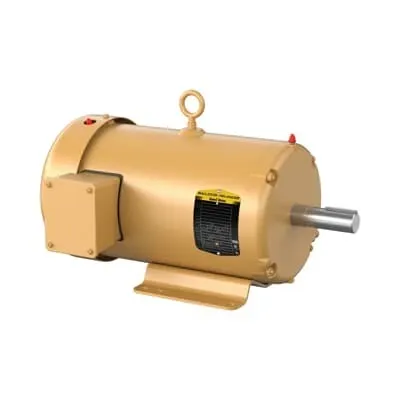

ABB 7BEM3611T-5 General Purpose Motor - IE3 Premium
Part Number: 7BEM3611T-5
Quick Summary
ABB 7BEM3611T-5 General Purpose Motor powers 3-phase processes in light industrial equipment. This 3 HP, 575 V motor is engineered for reliable service in demanding environments, helping minimize unplanned downtime and maintenance costs. It carries CSA and UR certifications (with CSA EEV) and aligns with NEMA standards for TEFC ruggedness, supporting safe operation across North American facilities. Designed for straightforward installation on a foot-mounted, horizontal F1 arrangement, it fits standard footprints and simplifies retrofits. With IE3 Premium Efficiency and a conservative service factor, it supports energy-conscious design goals and lowers total cost of ownership in automation and manufacturing applications.
Product Information
Extended Description
7BEM3611T-5 ABB: General Purpose Motor 3 Hp 575 V (EM3611T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1760RPM,3PH,60HZ,182T,3632M,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3611T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYQ570: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
EM3611T-5
Gross Volume
5274.135 in³
Gross Weight
73 lb
Horsepower Rating UL/CSA
3.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
3HP,1760RPM,3PH,60HZ,182T,3632M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 3 HP, 1800 RPM, Frame Size 182T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (EM3611T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
75 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
73 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.3 A
Rated Efficiency
89.50 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B36Q570S582G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 182T, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
K
Voltage Rating
575 V
Feature → Business Impact → Application: The 3 HP output at 575 V and 60 Hz delivers consistent, controllable torque for conveyors and pumps, enabling predictable line speed and reduced process variation in packaging and assembly lines. This translates to measurable uptime and energy efficiency gains when integrated with existing control systems and soft starters in light-industrial automation. Feature → Business Impact → Application: TEFC enclosure with frame size 182T and foot-mountable design provides robust protection against dust, moisture, and corrosion on factory floors, improving mean time between failures and simplifying installation in open plants and dusty environments. Feature → Business Impact → Application: IE3 Premium Efficiency reduces energy consumption during continuous or high-cycle operation, lowering electricity bills and supporting sustainability targets across multiple production shifts. Feature → Business Impact → Application: Regreasable bearings and a 1.15 service factor offer longer service intervals and better torque reserve, reducing maintenance frequency and extending motor life in demanding cooling and loading conditions. Feature → Business Impact → Application: A shaft diameter of 1.13 in and standard mounting (horizontal F1) ensure quick coupling compatibility with existing belts, pulleys, or gear drives, accelerating installation and minimizing system downtime in OEM and end-user facilities. Feature → Business Impact → Application: Ready stock at multiple warehouses with 0-day lead time supports fast procurement, enabling just-in-time maintenance and rapid ramp-ups for seasonal or unexpected demand in distribution and manufacturing environments.
Get a Quick Quote for a ABB 7BEM3611T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM3611T-5?
Enquire Now
FAQs
Yes. This motor is designed for 575 V, 60 Hz three-phase systems, delivering 3 HP at 1760 r/min with a 182T frame and TEFC enclosure. It uses a 3.3 A rated current and can be direct-on-line started, making it suitable for standard industrial drives and control panels.
The motor carries CSA, CSA EEV, and UR certifications, with NEMA compatibility in mind. These approvals support regulatory compliance in North American facilities, enabling safer operation and easier qualification for energy and safety audits. This can simplify procurement for regulated industries and reduce supply-chain risk.
This is a foot-mounted, horizontal (F1) motor with TEFC enclosure, frame size 182T. Plan for a compatible coupling to your belt or gear drive, ensure alignment with standard mounting patterns, and verify space for service access. The regreasable bearings also favor simple maintenance scheduling during routine plant maintenance windows.
IE3 Premium Efficiency reduces energy consumption across continuous or high-cycle operations, lowering energy costs over the motor’s life. When applied to conveyors, pumps, or fans, this can yield noticeable savings on electricity bills, helping shorten payback periods and support sustainability initiatives without sacrificing performance.
With regreasable bearings and a 60-minute duty profile, expect longer intervals between lubrication and fewer unscheduled downtime events. The motor’s 1.15 service factor provides torque reserve during startup and peak loads, improving system reliability. If replacing an older unit, match the 182T frame, 575 V rating, and 3 HP output for a smooth retrofit.
