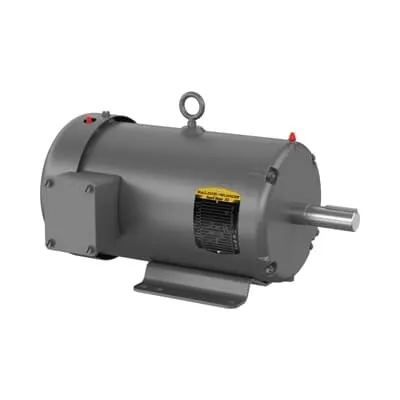

ABB 7BEM3611T-57 General Purpose Motor - IE3 Certified
Part Number: 7BEM3611T-57
Quick Summary
ABB 7BEM3611T-57 is a general purpose motor for 3-phase drives in industrial equipment such as pumps, conveyors, and fans. When selecting motors, engineers often struggle to balance energy efficiency with reliability across fluctuating loads and changing duty cycles. This design carries CE, CSA, and IE3 efficiency certifications, along with UR and WEEE compliance for broad international installation. The 230/400 V operation, TEFC enclosure and 182T frame simplify procurement, installation, and maintenance, while delivering consistent performance across regional supply chains. With stock positioned across multiple warehouses and a 0 day lead time, this model helps project teams meet aggressive schedules and reduce downtime.
Product Information
Extended Description
7BEM3611T-57 ABB: General Purpose Motor 3 Hp 230 V (EM3611T-57)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1460RPM,3PH,50HZ,182T,3632M,TEF
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EM3611T-57
Certification Agency
CE | CSA | IE3 | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYA001: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
50 Hz
Global Commercial Alias
EM3611T-57
Gross Volume
5274.135 in³
Gross Weight
70 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
3HP,1460RPM,3PH,50HZ,182T,3632M,TEFC,F1
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 3/2.2 HP, 1500 RPM, Frame Size 182T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/400 V, 50 Hz (EM3
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
72 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
70 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9.7 A | 5.6 A
Rated Efficiency
86.70 %
Rated Speed
1460 r/min
Replaced Product ID (OLD)
7B36A001R919G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
3/2.2 HP, 1500 RPM, Frame Size 182T, Standard, 3 PH, TEFC, 230/400 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 400 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
IE3 efficiency at 86.70% lowers energy costs for continuous duty applications such as conveyors and pumps. The improved efficiency translates into measurable operating savings over the motor’s life and helps meet corporate sustainability goals. TEFC enclosure provides rugged protection against dust, moisture and harsh shop floors. This reduces unplanned downtime and extends bearing life, especially in outdoor or dirty environments, while maintaining reliable performance. The 182T frame with 230/400 V ratings offers plug-and-play compatibility across common electrical infrastructures. The standardized frame and voltage options simplify stocking and maintenance, reducing total cost of ownership. With 4 poles and 50 Hz operation, the motor delivers a rated speed of 1460 r/min and a synchronous speed of 1500 r/min, ensuring stable torque and smooth operation. Direct On Line starting keeps integration straightforward for busy production lines. Foot mounted base type and F1 mounting position streamline installation and alignment with minimal accessories, minimizing retrofit time and helping engineers meet project deadlines. Global stock and 0 day lead time across multiple warehouses enable rapid procurement and predictable project planning.
