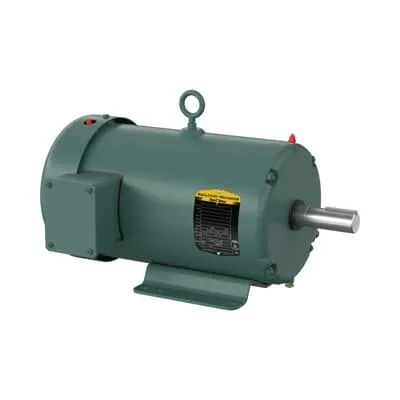

ABB 7BEM3611T-9 Motor - TEFC 3HP 60Hz
Part Number: 7BEM3611T-9
Quick Summary
The ABB 7BEM3611T-9 motor delivers 3 HP, 230/460 V three-phase performance for demanding quarry and material-handling applications. In industrial settings, you need reliable starts, steady efficiency, and a robust enclosure, and this model delivers those essentials. With certifications including CSA, CSA EEV, and UR, it meets stringent regulatory requirements while supporting premium performance. The TEFC enclosure, 182T frame, and 60 Hz operation make it a solid fit for continuous-duty conveyors, pumps, and mixers in harsh environments. Leveraging its compatibility with standard foot-mounted installations and a direct-on-line start, it provides a strong combination of reliability and cost efficiency for your plant floor.
Product Information
Extended Description
7BEM3611T-9 ABB: Severe Duty Motor 3 Hp 230 V (EM3611T-9)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1750RPM,3PH,60HZ,182T,3636M,TEF
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3611T-9
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYQ306: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
EM3611T-9
Gross Volume
7192.91 in³
Gross Weight
83 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
3HP,1750RPM,3PH,60HZ,182T,3636M,TEFC,F1
Made To Order
No
Medium Description
Quarry - Design C, 3 HP, 1800 RPM, Frame Size 182T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM3611T-9)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
C
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
74 %
Product Name
Quarry - Design C
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
83 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.6 A | 4.3 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
3 HP, 1800 RPM, Frame Size 182T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: 3 HP, 230/460 V, 60 Hz, 4-pole design with 1750 r/min nominal speed → Business Impact: Delivers strong torque with straightforward direct-on-line starting, reducing startup time and equipment wear in high-load applications. Application: Ideal for conveyors and pumps in quarry and processing lines. Feature: TEFC enclosure, frame size 182T, foot-mounted configuration → Business Impact: Enhances protection in dusty, dirty environments and simplifies retrofits, enabling quick, vibration-resistant installations. Application: Suitable for rough-floor plants and outdoor installations. Feature: Efficiency 89.50% and power factor ~0.74 → Business Impact: Lowers energy costs in continuous-duty operation and improves electrical system performance, supporting ROI in long-running conveyors. Application: Material handling and grinding processes with high duty cycles. Feature: Insulation Class F and ambient rating 40 °C → Business Impact: Improves thermal resilience, reducing thermal excursions and extending motor life in hot factory floors or outdoor sites. Application: Heavy industry and cement/stone processing lines. Feature: Bearing 6206 (Ball) and shaft diameter 1.13 in → Business Impact: Durable bearings support longer service intervals and reduced maintenance, cutting total cost of ownership. Application: High-torque starts and frequent load changes in milling and crushing operations. Feature: Certifications and standards (NEMA, CSA, CSA EEV, UR) → Business Impact: Facilitates compliant installations in regulated environments and eases procurement across global sites. Application: Military, mining, and general industrial plants with strict sourcing rules. Feature: Medium Description Quarry - Design C and 182T frame compatibility → Business Impact: Tailored for quarry-duty duty cycles with compatible mounting and fit, minimizing rework and spare-part needs. Application: Quarry conveyors, rock-processing lines, and bulk-material handling. Feature: Starting method Direct On Line (DOL) → Business Impact: Simple control strategy with minimal hardware, reducing control cabinet complexity and startup time for low- to mid-torque applications. Application: Direct-drive conveyors and pumps with basic drive systems. Feature: Rated Current 8.6 A / 4.3 A (230 V / 460 V) → Business Impact: Clear sizing for electrical protection and cable routing, improving panel design and reducing wiring errors. Application: Electrical design for new installations and retrofits. Feature: Frame Size 182T and Shaft 1.13 in → Business Impact: Standardized mechanical interface for parts, spares, and couplings, accelerating maintenance and uptime. Application: Industrial conveyors and gear-driven systems. Feature: Efficiency and reliability claims backed by manufacturer data → Business Impact: Predictable performance supports reliability-centered maintenance programs and reduces unplanned downtime. Application: Continuous-process lines and material handling. Feature: Stocked at multiple warehouses and 0-day lead time → Business Impact: Improves uptime with ready-to-ship stock, enabling faster project execution and reduced lead times. Application: Plant upgrades and emergency replacements.
Get a Quick Quote for a ABB 7BEM3611T-9
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM3611T-9?
Enquire Now
FAQs
Yes. This motor uses a standard 182T frame and a foot-mounted configuration with a TEFC enclosure, enabling straightforward installation on existing bases and reducing the need for custom mounting hardware. It supports horizontal mounting (F1) for simple alignment with drives and belt conveyors in industrial plants.
At 60 Hz, the motor operates as a 3-phase unit rated for 230 V or 460 V with a rated current of 8.6 A (230 V) or 4.3 A (460 V). It delivers 3 HP, 1750 r/min nominal torque, a power factor of 0.74, and an efficiency of 89.50%, suitable for continuous-duty applications with reliable performance.
Yes. The product description explicitly references Quarry - Design C in the medium description, and the 182T frame, TEFC enclosure, and rugged bearings are tailored for heavy-duty, dusty quarry environments. It’s a strong fit for belt conveyors, crushers, and bulk-material handling in demanding sites.
The motor carries CSA, CSA EEV, and UR certifications and adheres to NEMA standards, ensuring compliance with North American regulatory requirements. These certifications facilitate deployment in regulated facilities and multi-site procurement, reducing risk during audits and installation approvals.
With a TEFC enclosure, F-class insulation, and ball bearings rated for durable operation, maintenance intervals are extended and downtime is reduced. The premium efficiency rating lowers energy costs over time, improving ROI in continuous-use lines such as conveyors and material-handling systems.
