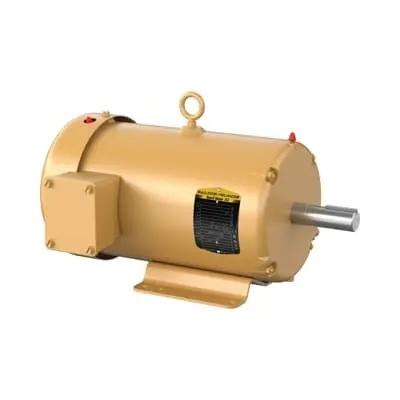

ABB 7BEM3615T-8 General Purpose Motor - TEFC
Part Number: 7BEM3615T-8
Quick Summary
ABB 7BEM3615T-8 General Purpose Motor powers 3-phase equipment like conveyors and pumps. When uptime and energy efficiency drive project success, a robust motor minimizes disruption and lifecycle costs. This unit meets CSA, CSA EEV, and UR certifications, aligns with NEMA design standards, and achieves premium IE3 efficiency for reliable operation. Stocked across multiple warehouses with a 0-day lead time, it accelerates deployment for OEMs and MRO teams alike. With a TEFC enclosure and a 184T frame, this motor combines rugged reliability with straightforward installation, making it a practical choice for demanding industrial environments.
Product Information
Extended Description
7BEM3615T-8 ABB: General Purpose Motor 5 Hp 200 V (EM3615T-8)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184T,3642M,TEF
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3615T-8
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYA001: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EM3615T-8
Gross Volume
7192.91 in³
Gross Weight
93 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184T,3642M,TEFC,F1
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEFC Enclosure, 200 V, 60 Hz (EM3615T-8)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
93 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
15.2 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B36A001S589G3
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 3 PH, TEFC, 200 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
200 V
Feature: 5 HP, 200 V, 3-phase operation at 60 Hz; Business Impact: delivers reliable torque with premium efficiency, helping reduce energy costs over the motor’s life. Application: ideal for conveyors and pumps in automated lines. Paragraph continues with TEFC enclosure for harsh environments, reducing maintenance frequency and extending service life across packaging lines and process automation. Foot-mounted horizontal mounting and 184T frame simplify retrofit and OEM integration, enabling quick installation in existing equipment and minimizing down-time during upgrades. IE3 efficiency (89.50%) and a service factor of 1.15 translate to measurable energy savings and stable performance under overload, benefiting continuous-duty conveyors, fans, and pumps. Certifications (CSA, CSA EEV, UR) and NEMA design code B ensure regulatory compliance and reliable procurement, with stock available across key warehouses for fast project mobilization and risk mitigation.
