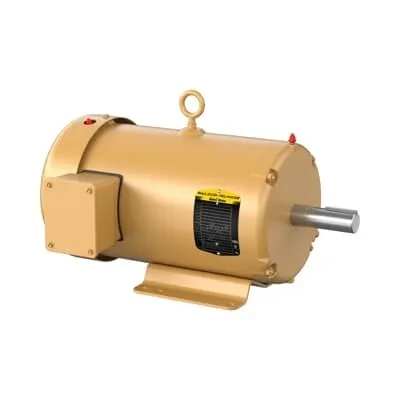

ABB EM3616T-5 General Purpose Motor - IE3 Premium Efficiency
Part Number: 7BEM3616T-5
Quick Summary
General Purpose Motor EM3616T-5 delivers 7.5 HP at 575 V for reliable drives in conveyors and pumps. Many buyers face tradeoffs between efficiency, maintenance, and downtime in demanding environments. It carries IE3 premium efficiency and CSA/UR certifications, with NEMA design compliance, ensuring regulatory alignment and safer operation. With a 184T frame, TEFC enclosure, and foot-mounted base, it integrates quickly into existing systems, reducing installation time and retrofit costs. This motor supports consistent performance in continuous duty applications, helping engineers meet uptime targets while lowering total cost of ownership. Designed for 60 Hz operation and 3470 r/min speed, it delivers dependable torque in mixed load conveyors.
Product Information
Extended Description
7BEM3616T-5 ABB: General Purpose Motor 7.5 Hp 575 V (EM3616T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,3470RPM,3PH,60HZ,184T,3646M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3616T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
36LYG271: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EM3616T-5
Gross Volume
7192.91 in³
Gross Weight
98 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
7.5HP,3470RPM,3PH,60HZ,184T,3646M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 7.5 HP, 3600 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (EM3616T-5
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
93 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
98 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6.8 A
Rated Efficiency
89.50 %
Rated Speed
3470 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
7.5 HP, 3600 RPM, Frame Size 184T, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
L
Voltage Rating
575 V
Feature: IE3 premium efficiency rating. Business Impact: Reduces energy costs and heat generation, supporting lower overall operating expenses. Application: Ideal for conveyors, pumps, and fans in continuous-duty manufacturing lines. Feature: TEFC enclosure with insulation class F. Business Impact: Enhanced protection against dust and moisture, extending motor life in harsh environments. Application: Manufacturing floors and packaging lines where reliability matters. Feature: 184T frame, 2-pole design, 3470 r/min. Business Impact: Familiar fit with existing baselines, facilitating smooth retrofits and predictable performance. Application: Replacing older motors in industrial drives. Feature: Foot-mounted base and horizontal orientation. Business Impact: Simplified installation, alignment, and service access, reducing commissioning time. Application: OEM equipment and retrofits on conveyors and pumps. Feature: DOL starting capability and 575 V 3-phase supply at 60 Hz. Business Impact: Straightforward control integration and dependable startup for steady line operation. Application: Standard industrial drives with minimal control complexity. Feature: Certifications and design compliance (NEMA A, IE3, CSA/UR). Business Impact: Regulatory alignment, safer operation, and easier procurement. Application: Upgrades and new installations requiring proven compliance.
