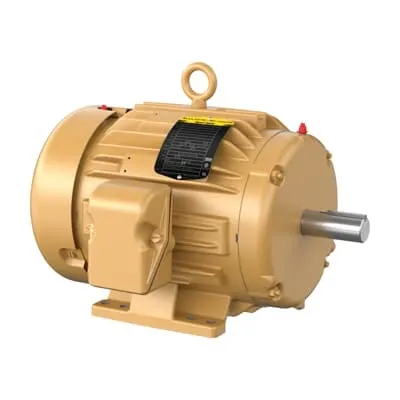

ABB 7BEM3663T General Purpose Motor - Premium Efficiency
Part Number: 7BEM3663T
Quick Summary
ABB 7BEM3663T General Purpose Motor provides a reliable 5 HP drive for conveyors and pumps in light manufacturing. This rugged 3-phase motor is designed for continuous operation in demanding environments, helping minimize downtime and maintenance costs. The unit features premium efficiency and a TEFC enclosure, with CSA, CSA EEV, and UR certifications supporting compliance and performance in regulated settings. Built for quick stocking and fast deployment, it ships from multiple warehouses, enabling rapid project ramp-ups. With 230/460 V operation at 60 Hz and a 184T frame, it integrates cleanly with standard mounting and drive systems, delivering consistent torque and dependable start-up across a broad range of applications.
Product Information
Extended Description
7BEM3663T ABB: General Purpose Motor 5 Hp 230 V (EM3663T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,3480RPM,3PH,60HZ,184T,0628M,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3663T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
06LYH002: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EM3663T
Gross Volume
5274.135 in³
Gross Weight
99 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,3480RPM,3PH,60HZ,184T,0628M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 5 HP, 3600 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM3663T
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
90 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
99 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
11.6 A | 5.8 A
Rated Efficiency
88.50 %
Rated Speed
3475 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 3600 RPM, Frame Size 184T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
K
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure and 184T frame provide robust protection against dust, moisture, and contaminants. Business Impact: Reduces maintenance cycles and extends motor life in tough industrial environments. Application: Ideal for belt conveyors, pumps, and fans in food processing, packaging, and material handling lines. Feature: Premium efficiency with a 1.15 service factor delivers high torque with energy savings. Business Impact: Lowers operating costs, improves power factor, and supports regulatory compliance in energy-sensitive facilities. Application: Suitable for continuous-duty drives in 60 Hz systems, including packaging lines and HVAC blowers. Feature: Dual voltage 230 V / 460 V and 3-phase operation. Business Impact: Simplifies procurement and integration with existing VFDs and drives, reducing stocking complexity. Application: Fits legacy plant networks and new installations in manufacturing and process industries. Feature: Regreasable bearings (6206/6205) and maintenance-friendly design. Business Impact: Extends bearing life, reduces unplanned downtime, and lowers maintenance labor costs. Application: Long-running conveyors and pumps in dusty environments benefit from predictable service intervals. Feature: Direct On Line starting, foot-mounted orientation, and horizontal mounting (F1). Business Impact: Simplifies installation, minimizes motor footprint, and accelerates commissioning. Application: Quick out-of-the-box integration with standard bases, couplings, and gear reducers in OEM and aftermarket projects.
