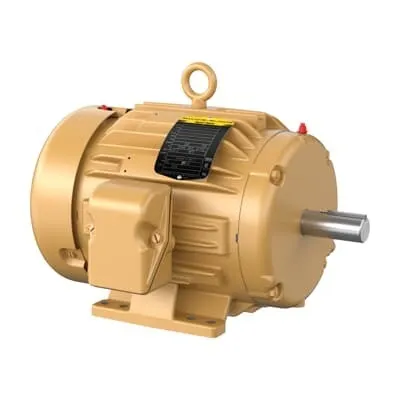

ABB 7BEM3664T General Purpose Motor - Premium Efficiency
Part Number: 7BEM3664T
Quick Summary
The 7BEM3664T general purpose motor provides 2 HP for 3-phase industrial drives, including conveyors, pumps, and fans. This ABB unit is engineered to minimize downtime with a robust TEFC enclosure and a durable 184T frame, simplifying installation in tight or harsh environments. Manufacturers frequently struggle with energy waste, maintenance costs, and parts availability; this motor targets those challenges with premium efficiency, a 60-minute duty rating, and easily sourced stock. Certified for broad compliance (CSA, CSA EEV, UR) and aligned with NEMA design practices, it harmonizes with US and international panels. With 230/460 V operation and straightforward mounting, it supports quick integration into existing systems while delivering dependable performance in demanding industrial contexts.
Product Information
Extended Description
7BEM3664T ABB: General Purpose Motor 2 Hp 230 V (EM3664T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1165RPM,3PH,60HZ,184T,0642M,TEF
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3664T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
06LYC101: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EM3664T
Gross Volume
5626.5 in³
Gross Weight
108 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1165RPM,3PH,60HZ,184T,0642M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 2 HP, 1200 RPM, Frame Size 184T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM3664T
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
68 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
22 in
Product Net Height
15.5 in
Product Net Weight
108 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
6.3 A | 3.15 A
Rated Efficiency
88.50 %
Rated Speed
1165 r/min
Replaced Product ID (OLD)
7B06C101W970G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
2 HP, 1200 RPM, Frame Size 184T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
K
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure and rugged 184T frame provide enhanced protection against dust, dirt, and moisture in demanding environments. Business Impact: Improves uptime and reduces enclosure-related maintenance, lowering lifecycle costs. Application: Suitable for conveyors, fans, and pumps operating in factory floors or outdoor installations. Feature: Premium Efficiency motor with a high efficiency rating (88.50% typical) and a 1.15 service factor. Business Impact: Delivers measurable energy savings and better performance under varying loads, reducing operating expenses. Application: Ideal for continuous duty, energy-conscious processes and HVAC-driven equipment.Feature: 3-phase 60 Hz operation at 230/460 V with 2 HP output and 1165 rpm. Business Impact: Aligns with standard industrial power distribution, simplifying electrical design and procurement while maintaining precise speed control. Application: Best for medium-speed drives in material handling and process equipment.Feature: Foot-mounted, horizontal mounting with a 184T frame and shaft diameter of 1.13 in. Business Impact: Eases replacement and compatibility with existing bases; reduces retrofit complexity and spare-part inventory. Application: Replaces older frame motors in legacy systems with minimal machine modifications.Feature: Regreasable bearings and standard DOL starting. Business Impact: Extends bearing life and lowers maintenance intervals; reduces startup torque concerns and wiring complexity. Application: Heavy-duty machinery and lines that require quick startup and long service life.Feature: Stocked at multiple warehouses with 0-day lead time and a 60-minute duty rating. Business Impact: Shortens procurement cycles, lowers mismatch risk, and accelerates production throughput. Application: Critical for just-in-time manufacturing and spare-part readiness in global operations.
Get a Quick Quote for a ABB 7BEM3664T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM3664T?
Enquire Now
FAQs
The motor is foot-mounted with a horizontal mounting position (F1) and a 184T frame, designed for easy replacement in existing bases. It uses a 1.13 in shaft diameter and supports direct-on-line starting, making it straightforward to integrate with standard 230/460 V, 3-phase power supplies and common belt or rigid-ply driven equipment. This simplifies retrofits and minimizes downtime.
Key specs include 2 HP output, 1165 r/min rated speed, 3-phase operation at 60 Hz, voltage rating 230/460 V, and rated currents of 6.3 A / 3.15 A. It features a Premium Efficiency level, insulation class F, and a service factor of 1.15, with a TEFC enclosure and NEMA design B. This combination supports reliable performance across moderate to heavy loads.
Yes. TEFC enclosure provides robust protection against dust and moisture, and the 184T frame with rugged bearings is designed for continuous operation in factory floors or outdoor settings. Ambient temperature and altitude ratings (40 °C and up to 1000 m) support versatile installation, while DOL starting keeps startup requirements simple for conveyor and pump applications.
The motor carries CSA, CSA EEV, and UL UR certifications, ensuring compliance for electrical equipment in North America and beyond. It also aligns with NEMA design standards (Code B) and carries a TEFC enclosure designation, providing confidence for panel builders and integrators working to meet regulatory requirements.
Maintenance is simplified by regreasable bearings and a robust TEFC design that minimizes exposure to contaminants. With stock available at multiple warehouses and a 0-day lead time, procurement is fast, reducing downtime. The 2 HP, 60 Hz, and 1.15 SF rating support efficient operation and favorable long-term return on investment in continuous-duty applications.
