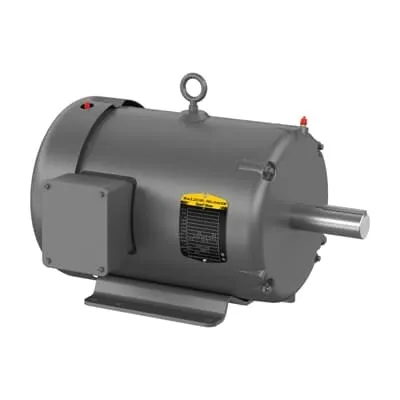

ABB EM3702T General Purpose Motor - CSA UR
Part Number: 7BEM3702T
Quick Summary
ABB EM3702T General Purpose Motor is a reliable 2 HP, 230/460 V 3‑phase solution for standard industrial loads. For manufacturers and maintenance teams, stockouts and long lead times are a persistent challenge, but this model is stocked at multiple warehouses with 0 day lead time to help minimize downtime. It carries CSA and UR certifications, a NEMA Design B profile, and a TEFC enclosure, which translates to safety, compatibility, and consistent performance. With a 213T frame, 60 Hz operation, and broad voltage flexibility, this motor simplifies procurement and supports faster integration into automation projects while delivering dependable service life.
Product Information
Extended Description
7BEM3702T ABB: General Purpose Motor 2 Hp 230 V (EM3702T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,865RPM,3PH,60HZ,213T,3732M,TEFC
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3702T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYG813: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
EM3702T
Gross Volume
7192.91 in³
Gross Weight
110 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
2HP,865RPM,3PH,60HZ,213T,3732M,TEFC,F1,N
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 2 HP, 900 RPM, Frame Size 213T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM3702T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
8P
Number of Poles (High)
8
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
62 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
110 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7 A | 3.5 A
Rated Efficiency
84 %
Rated Speed
865 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
2 HP, 900 RPM, Frame Size 213T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
900 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature 1: 2 HP, 865 rpm, 60 Hz, 230/460 V capability. Business Impact: Delivers adequate torque for mid-size loads while staying compatible with standard VFDs and control schemes. Application: conveyors, pumps, and fans in general purpose industrial automation. Feature 2: TEFC enclosure. Business Impact: Enhanced protection against dust, dirt, and moisture for harsh manufacturing environments. Application: dry and semi‑enclosed factory floors where maintenance access is limited. Feature 3: Frame 213T, steel construction, 110 lb gross weight. Business Impact: Robust, standard frame size that reduces custom mounting costs and eases replacement stocking. Application: OEM equipment and retrofits with tight space constraints. Feature 4: Foot mounted base and horizontal mounting position (F1). Business Impact: Simplifies installation, improves alignment accuracy, and enables straightforward bolt‑up to existing bases. Application: line conveyors and pump skids in new or retrofit projects. Feature 5: NEMA Design B, Power Factor 0.62, Efficiency 84%, Service Factor 1.15. Business Impact: Reliable performance with energy efficiency and predictable startup; supports compliance with energy standards. Application: continuous‑duty industrial drives and standard drive trains. Feature 6: Stocked at multiple warehouses, 0 day lead time. Business Impact: Accelerates procurement cycles and reduces downtime risk for critical equipment. Application: urgent replacements and maintenance planning in manufacturing plants.
