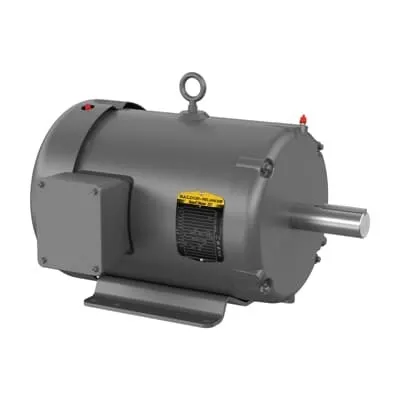

ABB 7BEM3710T-58 General Purpose Motor - IE3
Part Number: 7BEM3710T-58
Quick Summary
ABB 7BEM3710T-58 is a general purpose 3-phase motor delivering reliable power for fans, conveyors, and pumps in industrial facilities. Designed to minimize downtime and energy use, it supports continuous operation in demanding environments without sacrificing performance. This motor carries leading certifications—CE, CSA, IE3 efficiency, UR recognition, and WEEE compliance—ensuring global acceptance and long-term reliability. With TEFC enclosure, 400 V supply, and 50 Hz operation, it integrates smoothly with standard plant power and control systems. Its robust frame, standard mounting (213T), and 1460 rpm rating translate to predictable maintenance schedules and reduced total cost of ownership, while offering scalable performance for automation line upgrades and process modernization.
Product Information
Extended Description
7BEM3710T-58 ABB: General Purpose Motor 7.50 Hp 400 V (EM3710T-58)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1460RPM,3PH,50HZ,213T,3736M,T
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EM3710T-58
Certification Agency
CE | CSA | IE3 | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYA001: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
50 Hz
Global Commercial Alias
EM3710T-58
Gross Volume
7561.383 in³
Gross Weight
127 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
7.5HP,1460RPM,3PH,50HZ,213T,3736M,TEFC,F
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 7.5/5.5 HP, 1500 RPM, Frame Size 213T, Standard Mounting, 3 Phase, TEFC Enclosure, 400 V, 50 Hz (EM371
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
7.50 Hp
Power Factor
82 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
127 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
10.8 A
Rated Efficiency
89.60 %
Rated Speed
1460 r/min
Replaced Product ID (OLD)
7B37A001S060G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
7.5/5.5 HP, 1500 RPM, Frame Size 213T, Standard, 3 PH, TEFC, 400 V
Standards
NEMA
Starting of Motor
Wye Start - Delta Run
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1500 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
400 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature → Business Impact → Application: The IE3 efficiency rating of this 7.5 HP motor reduces energy consumption and operating costs in continuous duty applications, such as conveyors and blowers, while maintaining stable torque at 1460 r/min. This translates to lower energy bills and improved process control in packaging lines and material handling. Feature → Business Impact → Application: TEFC enclosure provides robust protection against dust and light moisture, extending motor life in general plant environments and slashed maintenance downtime for factory floor equipment. Application includes pumps and fans in HVAC, plastics, and food processing lines where reliability matters. Feature → Business Impact → Application: Frame 213T, foot-mounted horizontal mounting simplifies installation and retrofit into existing bases, enabling quick OEM integration and reduced commissioning time for new conveying systems and packaging machines. Feature → Business Impact → Application: 400 V, 50 Hz operation aligns with common US/EU power standards, enabling plug-and-play compatibility with standard VFDs and control panels, reducing integration risk in automation projects. Feature → Business Impact → Application: NEMA Design B, 4-pole construction with Wye-Delta starting provides smooth startup and compatibility with legacy control schemes, limiting electrical stress and extending drive life on conveyors and mixers. Feature → Business Impact → Application: Certifications (CE, CSA, IE3, UR, WEEE) support cross-border compliance and supplier confidence, enabling rapid quotes for multi-site deployments and export readiness for industrial automation projects.
Get a Quick Quote for a ABB 7BEM3710T-58
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM3710T-58?
Enquire Now
FAQs
This motor uses a 213T frame with foot-mounted horizontal mounting for straightforward installation. It operates on 400 V, 50 Hz three-phase power and supports standard plant wiring and motor control centers, with Wye-Delta starting options to accommodate legacy drives.
The motor is a 4-pole design delivering 1460 r/min (synchronous ~1500 r/min) with a rated current of 10.8 A and an efficiency of 89.60%. It’s rated for continuous duty with IE3 energy efficiency and a 7.5 HP output at 400 V.
Yes. The 7BEM3710T-58 is a 3-phase, TEFC, 4-pole motor designed for continuous operation in standard industrial drives, including conveyors, pumps, and fans, with robust construction to handle ongoing production cycles.
The motor carries CE, CSA, IE3, UR, and WEEE certifications, providing regulatory compliance across markets and supporting export readiness for global automation projects.
Warranty terms require returns if a fault occurs under warranty; routine maintenance should focus on bearings (e.g., 6307 ball bearings), insulation, and drive alignment. The motor’s robust TEFC design and standard platform help minimize spare parts lead times and optimize total cost of ownership.
