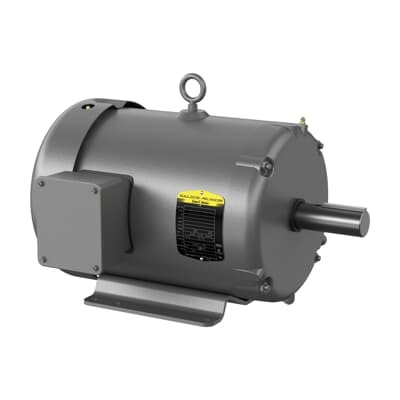

ABB 7BEM3710T-9 Severe Duty Motor - CSA CSA EEV UR
Part Number: 7BEM3710T-9
Quick Summary
The 7BEM3710T-9 is a rugged, 7.5 HP three-phase motor designed for continuous operation in demanding industrial environments such as quarry and heavy-duty conveyors. This ABB solution targets downtime reduction and consistent performance in harsh conditions where reliability matters most. With certifications including CSA, CSA EEV, and UR, it demonstrates compliance across North American safety and electrical standards. The motor offers premium efficiency and a TEFC enclosure, protecting critical components in dusty or damp facilities. By combining strong mechanical design with standard 230/460 V operation at 60 Hz, it delivers energy efficiency, predictable speed, and straightforward integration into existing drive systems, helping lower lifecycle costs for industrial facilities and OEMs alike.
Product Information
Extended Description
7BEM3710T-9 ABB: Severe Duty Motor 7.5 Hp 230 V (EM3710T-9)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1765RPM,3PH,60HZ,213T,3744M,T
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3710T-9
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYN527: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
EM3710T-9
Gross Volume
7192.91 in³
Gross Weight
140 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
7.5HP,1765RPM,3PH,60HZ,213T,3744M,TEFC,F
Made To Order
No
Medium Description
Quarry - Design C, 7.5 HP, 1800 RPM, Frame Size 213T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM3710T-9)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
C
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
76 %
Product Name
Quarry - Design C
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
140 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
20.2 A | 10.1 A
Rated Efficiency
91.70 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 230/460 V, 60 Hz three-phase input supports widespread power distribution and reduces wiring complexity on site, enabling faster installation and lower wiring costs for new builds and upgrades. This directly improves project timelines and total installed cost (TIC) for material handling lines and mixers in mining or quarry operations. Feature → TEFC enclosure and 213T frame provide robust protection against dust, moisture, and washdown environments, extending motor life in harsh manufacturing plants and reducing unscheduled downtime in conveyors and pumps. This facilitates safer, longer runs with less maintenance in aggressive environments. Feature → NEMA Design C and Direct On Line starting enable reliable startup under heavy loads without special soft-start hardware, improving startup resilience in rock crushing and material transfer applications. This minimizes rotor stress and maintenance while improving overall line efficiency. Feature → 91.70% rated efficiency and premium efficiency designation help lower energy consumption and operating costs in continuous-duty applications, delivering measurable ROI for year-round operation. Feature → Foot-mounted base and 213T frame support straightforward mounting on standard bases and equipment frames, reducing installation time and enabling retrofits of legacy lines in metalworking or packaging plants. Application notes: industrial drive systems, conveyors, pumps, fans, and mixers seeking robust, cost-effective, long-life motors with solid spare-parts compatibility.
Get a Quick Quote for a ABB 7BEM3710T-9
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM3710T-9?
Enquire Now
FAQs
Yes. The 7BEM3710T-9 is specified for 230/460 V, 60 Hz three-phase operation and uses a foot-mounted, 213T frame with a TEFC enclosure, aligning with common industry motors and existing drive systems. Its Direct On Line starting and 4-pole design simplify integration with standard VFDs or soft-starters while preserving compatibility with existing mountings and base plates.
Key specs include 7.5 HP output, rated speed around 1765 r/min (4 poles), 3 phases, 60 Hz, frame size 213T, shaft diameter 1.38 in, and a rated efficiency of 91.70%. The motor is designed for continuous duty with a premium efficiency rating and a TEFC enclosure, making it suitable for demanding industrial duty cycles.
Absolutely. Its rugged TEFC enclosure, frame size 213T, and 60 Hz three-phase design are tailored for quarry and heavy-material handling applications, as well as conveyors and industrial pumps. The design supports reliable performance in dusty, cool-to-warm ambient conditions up to 40 °C and minimizes downtime in continuous-operation scenarios.
The 7BEM3710T-9 carries multiple approvals including CSA, CSA EEV, and UR, ensuring compliance with North American electrical safety and energy standards. It also aligns with premium efficiency targets and NEMA design considerations, supporting regulatory and OEM requirements across diverse industrial settings.
Plan for routine inspection of bearings (6307 ball bearings noted in spec), lubrication per manufacturer guidance, and periodic inspection of the TEFC housing seals. The motor’s rugged construction, high efficiency, and direct-start capability contribute to lower energy costs and reduced maintenance intervals, improving return on investment in continuous-duty processes.
