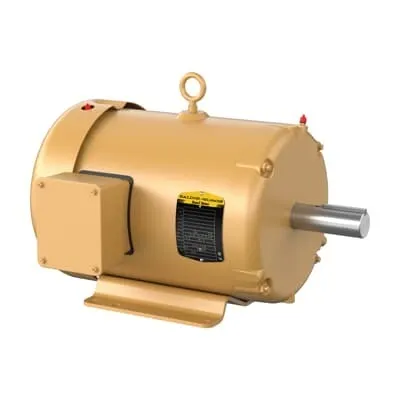

ABB 7BEM3711T-5 General Purpose Motor - 575 V TEFC IE3
Part Number: 7BEM3711T-5
Quick Summary
General purpose motor 7BEM3711T-5 from ABB delivers reliable 10 HP performance for 3‑phase duty in process and packaging lines. This design addresses common pain points such as high startup current, energy waste, and maintenance-heavy enclosures in challenging industrial environments. Key certifications include premium IE3 efficiency, a rugged TEFC enclosure, and CSA/UR safety approvals to support regulatory compliance across North America. With ready-to-stock availability and minimal downtime, it supports fast procurement and predictable maintenance cycles. The model also aligns with standard 215T frame mounting and 575 V operation, enabling seamless integration with existing electrical systems and supply chains, helping OEMs reduce spare parts costs and improve overall uptime.
Product Information
Extended Description
7BEM3711T-5 ABB: General Purpose Motor 10 Hp 575 V (EM3711T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,3490RPM,3PH,60HZ,215T,3728M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3711T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
37LYG813: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EM3711T-5
Gross Volume
7192.91 in³
Gross Weight
119 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,3490RPM,3PH,60HZ,215T,3728M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 10 HP, 3600 RPM, Frame Size 215T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (EM3711T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
87 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
119 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9.5 A
Rated Efficiency
90.20 %
Rated Speed
3490 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
10 HP, 3600 RPM, Frame Size 215T, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
575 V
IE3 Premium Efficiency is engineered to lower operating costs by reducing shaft power losses, which translates to measurable energy savings in pumps, fans, and conveyors. This aligns with sustainable maintenance programs and helps facilities meet corporate energy targets while maintaining reliable torque and speed at 60 Hz. TEFC (Totally Enclosed Fan Cooled) protection reduces ingress of dust and moisture, extending mean time between maintenance and enabling operation in dirty or washdown environments without frequent enclosure remediation. The 215T frame with foot-mounted orientation simplifies installation on existing bases and minimizes retrofit costs for OEMs, while the 575 V, 3-phase supply supports seamless integration with standard plant power distribution. Direct On Line starting at 60 Hz delivers immediate availability for line applications, contrasted with the reduced inrush benefits of soft starters in sensitive lines. Regreasable bearings (6307 NDE and 6206) provide low-labor maintenance and longer service intervals, a critical advantage for remote or mission-critical installations. Service Factor of 1.15 offers margin for occasional overloads, reducing the risk of nuisance trips in demanding processes such as blow-molding or material handling. The 10 HP rating, 3490 r/min nominal speed, and 1.38 in shaft diameter support compatible coupling options and predictable dynamic performance in conveyors, mixers, and blowers. Stocking availability across multiple warehouses with 0-day lead time ensures fast procurement for spares, OEM rebuilds, or uptime projects, delivering tangible total cost of ownership reductions for facilities running continuous operations.
