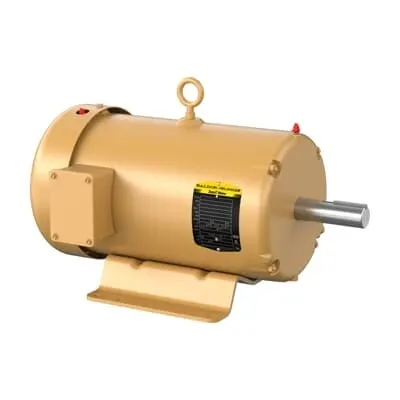

ABB 7BEM3712 General Purpose Motor - TEFC
Part Number: 7BEM3712
Quick Summary
ABB 7BEM3712 General Purpose Motor is a reliable 3-phase drive solution for industrial equipment such as conveyors, pumps, and process lines. This model delivers 2 HP at 230/460 V and 60 Hz, with a TEFC enclosure and frame size 213, engineered for continuous duty in demanding environments. In practice, engineers wrestle with inconsistent performance, long lead times, and uncertain compatibility with existing drives. The 7BEM3712 addresses these pain points with a stock-available footprint and a 0-day lead time across multiple warehouses, enabling faster commissioning and reduced downtime. Certifications include CSA, CSA EEV, and UR recognition, supporting compliance in North American facilities and simplifying procurement. By combining high efficiency, rugged construction, and straightforward installation, this motor delivers reliable life-cycle value for constant operation.
Product Information
Extended Description
7BEM3712 ABB: General Purpose Motor 2 Hp 230 V (EM3712)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1175RPM,3PH,60HZ,213,3644M,TEFC
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3712
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYG890: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
EM3712
Gross Volume
5274.135 in³
Gross Weight
97 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
2HP,1175RPM,3PH,60HZ,213,3644M,TEFC,F1,N
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 2 HP, 1200 RPM, Frame Size 213, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM3712)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
60 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
97 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7 A | 3.5 A
Rated Efficiency
88.50 %
Rated Speed
1175 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
2 HP, 1200 RPM, Frame Size 213, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure paired with frame size 213. This rugged, weather- and dust-resistant housing reduces enclosure maintenance and protects windings in factory floors, enabling reliable operation for general purpose drives such as conveyors and pumps. Business impact: lower downtime and simplified maintenance programs. Application: general purpose motor installs in manufacturing lines. Feature: 3-phase operation at 60 Hz with 230/460 V rating and 2 HP output; 1175 rpm nominal speed. This combination provides predictable torque and load response, aiding precise control of line speeds and pump flows. Business impact: improved process stability and energy-efficient operation. Application: drive systems and machine tools in mixed-voltages environments. Feature: Foot-mounted, horizontal mounting with a 1.13 in shaft and frame size 213; Direct On Line starting. Business impact: straightforward installation, minimal alignment risk, and quick replacement. Application: retrofits and new equipment on crowded shop floors with limited space. Feature: Premium efficiency (88.50%) and 60% power factor. Business impact: energy cost reduction over long runtimes and improved electrical system performance. Application: continuous-duty applications such as conveyors, fans, and pumps in high-usage facilities. Feature: Stocked at multiple warehouses with 0 day lead time. Business impact: rapid deployment, reduced project lead times, and improved spare parts availability. Application: urgent replacements and just-in-time manufacturing environments. Feature: Certifications and standards alignment (CSA, CSA EEV, UR; NEMA design code A). Business impact: regulatory compliance, safer operation, and easier procurement for North American facilities. Application: regulated industries requiring compliant motors and dependable service availability.
