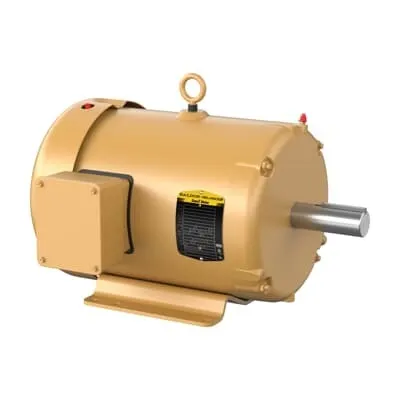

ABB 7BEM3714T General Purpose Motor - IE3 Premium
Part Number: 7BEM3714T
Quick Summary
The ABB 7BEM3714T General Purpose Motor powers three-phase machinery for pumps, conveyors, and general industrial equipment. Users often struggle with uptime, energy use, and spare-part availability, especially under varying loads and environments. This motor offers CSA and UR certification support, CSA EEV approval, and IE3 Premium efficiency for reliable, compliant operation. With a TEFC enclosure, foot-mount design, and 230/460 V compatibility, it aligns with modern plant standards while reducing lifecycle costs. Designed for 60 Hz operation and 1770 rpm nominal speed, it supports standard control schemes, wiring practices, and maintenance routines. Stocked across multiple warehouses improves lead times and availability for critical spares.
Product Information
Extended Description
7BEM3714T ABB: General Purpose Motor 10 Hp 230 V (EM3714T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215T,3752M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3714T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYH244: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EM3714T
Gross Volume
7561.383 in³
Gross Weight
162 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215T,3752M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 10 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM3714
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
162 lb
Product Net Width
16.5 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
25 A | 12.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B37H244S518G3
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
K
Voltage Rating
230 V | 460 V
IE3 Premium efficiency delivers measurable energy savings, reducing operating costs across continuous duty lines. This translates to lower energy bills, reduced heat load, and improved reliability in high-throughput conveyors and pumps used in material handling and manufacturing. TEFC enclosure provides robust protection against dust, moisture, and contaminants, extending mean time between maintenance and minimizing downtime on harsh factory floors. The motor's 10 HP, 1770 rpm, 230/460 V, 3-phase design (frame 215T) ensures compatibility with standard drives, existing wiring, and common control schemes, simplifying retrofits and new installations alike. Foot-mounted horizontal mounting (F1) supports straightforward installation and retrofit, reducing enclosure clearance concerns and enabling quicker commissioning. Regreasable bearings, along with a reliable 60-minute duty cycle, offer easy lubrication routines that extend bearing life in continuous operation. With stock availability across multiple warehouses and a 0-day lead time, procurement and replenishment become more predictable, supporting uptime-focused maintenance strategies. Certifications (CSA, CSA EEV, UR) and NEMA-style design underpin compliance and interoperability in regulated environments, reinforcing long-term service and spare-part alignment with plant standards.
Get a Quick Quote for a ABB 7BEM3714T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM3714T?
Enquire Now
FAQs
Yes. The 7BEM3714T supports 230/460 V, 60 Hz three-phase power and uses a foot-mounted (horizontal, F1) frame with a 215T enclosure, designed for straightforward installation and retrofit in existing plants.
Key specs include 10 HP output, 1770 rpm nominal speed, 3-phase operation, 60 Hz frequency, 230/460 V rating, frame 215T, and a service factor of 1.15. Efficiency is IE3 Premium, with a 25 A rated current (12.5 A on some configurations). Insulation class is F.
Ideal for general purpose mechanical drives such as pumps, conveyors, fans, and light duty machines in manufacturing and processing environments. Its TEFC enclosure, NEMA-style design, and continuous-duty rating help maintain performance in demanding production lines.
The motor carries CSA, CSA EEV, and UR certifications, supports IE3 Premium efficiency, and uses a TEFC enclosure with a 215T frame. These attributes help ensure regulatory compliance and reliability in regulated facilities.
Regreasable bearings enable scheduled lubrication to extend bearing life, while the TEFC enclosure reduces ingress-related wear. With 0-day lead time and stock across multiple warehouses, procurement supports rapid maintenance cycles and uptime targets, contributing to lower total cost of ownership.
