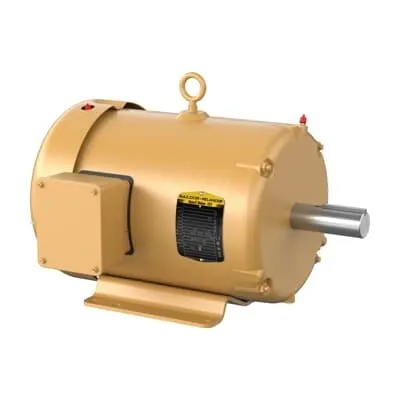

ABB EM3714T-8 General Purpose Motor - TEFC 200V 3PH
Part Number: 7BEM3714T-8
Quick Summary
General Purpose Motor delivers 10 HP at 200 V for standard 3-phase industrial drives. Sourcing readily available motors can slow projects, but the ABB EM3714T-8 ships from multiple US and global warehouses for rapid fulfillment. It carries CSA, UR, and CSA EEV certifications, supporting North American safety compliance and third-party verification. With TEFC enclosure, a frame size of 215T, and a nominal speed of 1770 r/min, this motor is ready for continuous service in conveyors, pumps, and fans. Designed for 60 Hz networks and 200 V supplies, it also offers a robust 1.15 service factor, enabling reliable performance.
Product Information
Extended Description
7BEM3714T-8 ABB: General Purpose Motor 10 Hp 200 V (EM3714T-8)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215T,3752M,TE
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3714T-8
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYA001: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EM3714T-8
Gross Volume
7561.383 in³
Gross Weight
165 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215T,3752M,TEFC,F1
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 10 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 3 Phase, TEFC Enclosure, 200 V, 60 Hz (EM3714T-8)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
82 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
165 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
28.6 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215T, Standard, 3 PH, TEFC, 200 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
200 V
Feature: 10 HP, 200 V, 3PH power supports scalable drive integration with reduced system complexity. Business Impact: Enables reliable, standard-compliant output for general industrial tasks, lowering integration risk. Application: Ideal for conveyors, pumps, and fans in manufacturing environments. Feature: TEFC enclosure protects windings from dust and moisture, reducing maintenance and extending service life. Business Impact: Lower total cost of ownership and fewer unscheduled downtimes. Application: Harsh factory floors and outdoor installations where ingress protection matters. Feature: Frame 215T and 1770 r/min at 60 Hz provide compatibility with common drive trains and mounting footprints. Business Impact: Faster installation and fewer adapter components, shortening project timelines. Application: OEM equipment, retrofits, and upgraded lines requiring standard frames. Feature: Insulation Class F and bearing 6307 | Ball enhance reliability under continuous operation. Business Impact: Enhanced thermal stability and longer bearing life in continuous duty service. Application: Pumps, fans, and material-handling equipment with high cycling demands. Feature: Service Factor 1.15 and NEMA design A support robust performance margins. Business Impact: Greater tolerance for peak loads and startup transients, reducing risk of nuisance trips. Application: General purpose motor drives in mid-scale manufacturing. Feature: Stock and lead-time advantages with 0 day lead time and multi-warehouse stocking. Business Impact: Quicker procurement, reduced downtime, and improved spare-part planning. Application: OEMs and maintenance teams needing fast, reliable supply chains.
