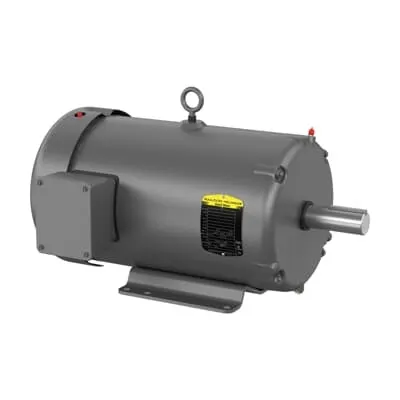

ABB EM3714T-9 Severe Duty Motor - CSA EEV UR Certified
Part Number: 7BEM3714T-9
Quick Summary
Severe Duty Motor EM3714T-9 delivers rugged 10 HP, 230 V three-phase power for demanding industrial drives across packaging, material handling, and process lines. This motor is designed to minimize unplanned downtime in harsh environments, with a TEFC enclosure and premium efficiency to reduce energy use and maintenance. Its North American certifications (CSA, CSA EEV, UR) support safe operation and compliance in manufacturing facilities, while the 215T frame size and 1.38 in shaft diameter enable straightforward fitment on existing bases. Ready-to-ship from multiple warehouses, it helps shorten lead times and streamline procurement. With a Direct On Line starting method and a continuous duty rating, this motor aligns with mid- to high-load applications where reliability matters most.
Product Information
Extended Description
7BEM3714T-9 ABB: Severe Duty Motor 10 Hp 230 V (EM3714T-9)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215T,3760M,TE
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM3714T-9
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYN852: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EM3714T-9
Gross Volume
7561.383 in³
Gross Weight
187 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215T,3760M,TEFC,F1
Made To Order
No
Medium Description
Severe Duty, 10 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM3714T-9)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
78 %
Product Name
Severe Duty
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
187 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
26.2 A | 13.1 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Dual voltage flexibility improves installation versatility and stock management: the motor supports 230 V and 460 V operation at 60 Hz, enabling a single SKU to serve multiple plant configurations and reducing spare parts inventory. Business impact is lower capital expenditure and simplified procurement for OEMs and maintenance teams in conveyors and pumps. In the field, this translates to faster commissioning and fewer wiring mistakes during panel wiring and motor connections, particularly in retrofits and new line builds. TEFC protection and a rugged steel frame support reliable operation in dusty or humid environments, which translates to reduced maintenance cycles and longer mean time between failures for critical industrial drives. Application-wise, the motor is well-suited for continuous-duty conveyors, mixers, and process equipment in packaging, food and beverage, and chemical plants, where ingress protection and consistent torque are essential. Premium efficiency (91.70%) lowers energy consumption and operational costs, providing a measurable return on investment over the motor’s life while helping facilities meet energy benchmarks and sustainability goals. Frame 215T, foot-mounted base, and horizontal mounting (F1) simplify installation on existing baseplates and ensure alignment with standard coupling hardware, minimizing installation time and labor costs. The 1.38 in shaft diameter and 4-pole design deliver robust starting torque for normal load ramps, while the 1770 r/min nominal speed provides balanced performance for a broad range of loads and duty cycles. Ready-to-ship stock from multiple warehouses supports just-in-time manufacturing and minimizes downtime for critical equipment on the plant floor.
