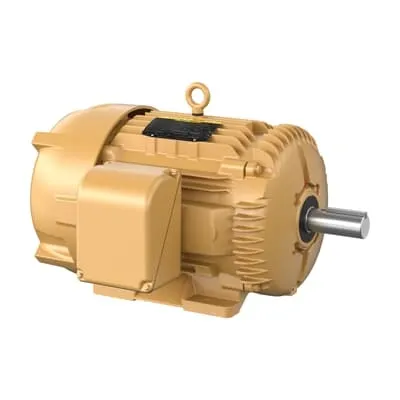

ABB 7BEM4103T-12 General Purpose Motor - Premium Efficiency
Part Number: 7BEM4103T-12
Quick Summary
ABB 7BEM4103T-12 general-purpose motor powers 3-phase drives across conveyors and pumps. Engineers confront downtime, energy waste, and compatibility when upgrading legacy equipment. It carries CSA, CSA EEV, and UR approvals, with a NEMA design A and TEFC enclosure. Designed for 60 Hz operation at 230/460 V, it delivers reliable performance while reducing operating costs. This aligns with lean manufacturing goals and reduces overall cost of ownership over motor life.
Product Information
Extended Description
7BEM4103T-12 ABB: General Purpose Motor 25 Hp 230 V (EM4103T-12)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1775RPM,3PH,60HZ,284T,1054M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM4103T-12
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
10LYL062: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
EM4103T-12
Gross Volume
14448.906 in³
Gross Weight
400 lb
Horsepower Rating UL/CSA
25.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
25HP,1775RPM,3PH,60HZ,284T,1054M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 25 HP, 1800 RPM, Frame Size 284T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM4103
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
81 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
400 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
62 A | 31 A
Rated Efficiency
93.60 %
Rated Speed
1775 r/min
Replaced Product ID (OLD)
7B10L062Z696
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
25 HP, 1800 RPM, Frame Size 284T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Y-Start/Delta Run
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
G
Voltage Rating
230 V | 460 V
High efficiency is built into the ABB 7BEM4103T-12, delivering 25 HP with a rated efficiency of 93.60% at 60 Hz. The motor supports both 230 V and 460 V operation, enabling a single stocked solution across varying plant electrical supplies. This dual-voltage capability translates to reduced spare-part inventories, simplified maintenance planning, and measurable energy savings across continuous-duty applications such as conveyors, pumps, and fans. This dual-voltage capability translates to reduced spare-part inventories, simplified maintenance planning, and measurable energy savings across continuous-duty applications such as conveyors, pumps, and fans. In practice, engineers gain predictable torque, smoother starts, and improved motor life in demanding factory environments. Engineered with a TEFC enclosure and a sturdy 284T frame, the motor is designed to withstand dusty shop floors and demanding ambient conditions. It is foot-mounted with horizontal orientation (F1) for fast, drop-in retrofits and straightforward alignment with standard couplings. The 1.88 in shaft diameter, 31 in net length, and overall 400 lb gross weight provide predictable fitment in legacy motors and new conveyors, reducing installation risk and enabling quicker commissioning. Reliability is reinforced by high-quality ball bearings (6311 and 6309) and a regreasable lubrication system, supporting long intervals between service and lower lifecycle costs. The motor is rated for continuous duty with a service factor of 1.15, providing a comfortable margin during startup and peak loads. Y-Start/Delta Run starting method minimizes electrical stress and drives smoother operation in pumps, fans, and material-handling equipment, contributing to reduced wear and extended asset life. Availability is a clear business lever: stock at multiple regional warehouses with zero-day lead times to keep projects on track. The design aligns with CSA, CSA EEV, and UR certifications, plus a NEMA-design A profile and TEFC enclosure for rugged industrial environments. This combination reduces procurement risk, simplifies compliance audits, and supports maintenance teams in rapidly upgrading legacy systems to modern, energy-efficient 60 Hz drives.
