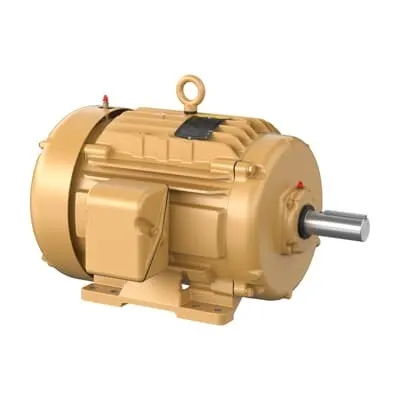

ABB 7BEM4106T-8 General Purpose Motor - IE3 Premium Efficiency
Part Number: 7BEM4106T-8
Quick Summary
General Purpose Motor 7BEM4106T-8 is a robust 3-phase drive solution delivering 20 HP at 200 V for continuous industrial operation. Engineers often struggle to source a motor that meets exact frame, mounting, and efficiency requirements without compromising uptime. This unit carries CSA, UR, and CSA EEV certifications, along with IE3 premium efficiency, ensuring regulatory compliance and energy savings in US facilities. With a 256T frame, TEFC enclosure, and direct-on-line starting, it offers straightforward installation and reliable performance in demanding environments. Stocked at multiple warehouses and designed for easy maintenance, it reduces project lead time and total cost of ownership while supporting scalable upgrades in manufacturing lines.
Product Information
Extended Description
7BEM4106T-8 ABB: General Purpose Motor 20 Hp 200 V (EM4106T-8)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,3510RPM,3PH,60HZ,256T,0936M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM4106T-8
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
09LYP011: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
EM4106T-8
Gross Volume
9651.933 in³
Gross Weight
242 lb
Horsepower Rating UL/CSA
20.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
20HP,3510RPM,3PH,60HZ,256T,0936M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 20 HP, 3600 RPM, Frame Size 256T, Standard Mounting, 3 Phase, TEFC Enclosure, 200 V, 60 Hz (EM4106T-8)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
89 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
242 lb
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
52 A
Rated Efficiency
91 %
Rated Speed
3510 r/min
Replaced Product ID (OLD)
7B09P011T605
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
20 HP, 3600 RPM, Frame Size 256T, Standard, 3 PH, TEFC, 200 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
200 V
256T frame and TEFC enclosure deliver rugged protection against dust, dirt, and oil, enabling reliable operation in harsh industrial environments. This translates to longer motor life and lower maintenance frequency, which is critical for conveyors, pumps, and fans in manufacturing lines. The result is reduced downtime and predictable performance across continuous-duty applications. IE3 premium efficiency reduces energy consumption by minimizing heat generation and electricity costs, delivering measurable operating savings on budget-constrained projects and helping facilities meet sustainability targets for 60 Hz, 200 V service. Direct On Line starting simplifies integration with existing soft-starter-free drives, cutting installation costs and eliminating additional startup hardware while maintaining smooth torque delivery for general-purpose loads. With a 256T frame, shaft diameter of 1.63 in, and foot-mounted configuration, installation alignment is straightforward, ensuring compatibility with standard motor bases and existing equipment footprints. The 20 HP rating at 3510 r/min (synchronous 3600 r/min) provides ample torque headroom for moderately demanding loads without oversizing, which can reduce spare-part inventory and procurement cycles. Bearing design (6309 Ball) and regreasable lubrication support longer service intervals, while insulation class F withstands typical plant temperature profiles up to 40 °C ambient, improving reliability in temperature-variant environments. Multiple warehouse stocking including US and China locations reduces lead times and accelerates commissioning, aiding project timelines and total cost of ownership.
Get a Quick Quote for a ABB 7BEM4106T-8
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM4106T-8?
Enquire Now
FAQs
The motor is foot-mounted with a 256T frame and TEFC enclosure, designed for horizontal mounting and direct-on-line starting. It supports standard 3‑phase 60 Hz systems at 200 V and fits common base plates and mounting footprints, simplifying retrofit and new installations alike.
Key specs include 20 HP output at 3510 r/min (synchronous 3600 r/min), 200 V, 52 A rated current, and 60 Hz operation. Efficiency is IE3, with service factor 1.15, ensuring solid torque margins for continuous-duty loads such as pumps and fans.
Yes. The motor is rated for Continuous duty, with a TEFC enclosure and robust bearings (6309 ball) suitable for long-running conveyors and similar loads in industrial environments. Direct On Line starting further supports immediate response without complex soft-starts.
This motor carries CSA, UR, and CSA EEV certifications, aligning with North American safety and reliability standards. These certifications aid in meeting plant safety programs and supplier qualification requirements.
Stock is available across multiple warehouses (US and China), with near-zero lead time as indicated by stock status. Warranty terms specify that warranty returns are managed under standard policies, with practical guidance on repair or replacement if a defect occurs within warranty.
