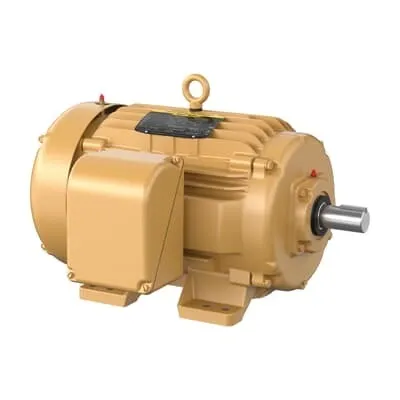

ABB 7BEM4107T General Purpose Motor - NEMA Premium
Part Number: 7BEM4107T
Quick Summary
General Purpose Motor 7BEM4107T delivers reliable power for demanding industrial applications such as pumps, fans, and conveyors. Many engineers struggle with downtime and energy waste when using older motors, extending project timelines and increasing operating costs. This ABB model carries CSA, CSA EEV, and UR certifications along with NEMA Premium efficiency and a TEFC enclosure to meet harsh factory conditions. With stock available across multiple warehouses and a compact 284TS footprint, it simplifies sourcing, installation, and maintenance across sites while delivering predictable performance and long service life.
Product Information
Extended Description
7BEM4107T ABB: General Purpose Motor 25 Hp 230 V (EM4107T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,3520RPM,3PH,60HZ,284TS,0944M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM4107T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
09LYF629: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
EM4107T
Gross Volume
14448.906 in³
Gross Weight
128.367 kg
Horsepower Rating UL/CSA
25.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot
Insulation Class
F
Invoice Description
25HP,3520RPM,3PH,60HZ,284TS,0944M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 25 HP, 3600 RPM, Frame Size 284Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM410
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
88 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
128.367 kg
Product Net Width
23.75 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
58 A | 29 A
Rated Efficiency
91.70 %
Rated Speed
3520 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
25 HP, 3600 RPM, Frame Size 284Ts, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
J
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 25 HP, 3520 r/min, 3-phase, 60 Hz specification delivers robust torque and smooth operation for continuous-duty applications like pumps and conveyors, reducing cycle times and improving process reliability across manufacturing lines. Feature → Business Impact → Application: TEFC enclosure provides protection in dirty or dusty environments, minimizing maintenance intervals and safeguarding rotor and windings in general industrial settings. Feature → Business Impact → Application: Premium efficiency (NEMA Premium) lowers energy consumption over the motor’s life, yielding meaningful operating-cost savings in long-running processes such as material handling and HVAC-driven systems. Feature → Business Impact → Application: Regreasable bearings (6311/6208) extend bearing life and reduce preventive maintenance frequency, cutting downtime and maintenance expenses in textile, packaging, and food & beverage lines. Feature → Business Impact → Application: Direct On Line starting enables fast, simple switch-on control, reducing electrical infrastructure requirements and allowing straightforward retrofits in existing equipment. Feature → Business Impact → Application: Stocked at multiple warehouses with 0-day lead time improves procurement agility, ensuring consistent production planning and reducing project risk for OEMs and integrators. Feature → Business Impact → Application: Frame size 284TS and 1.63 in shaft diameter support straightforward mounting and compatibility with standard mechanical designs, accelerating installation and spare-part sourcing in plant-wide upgrades.
