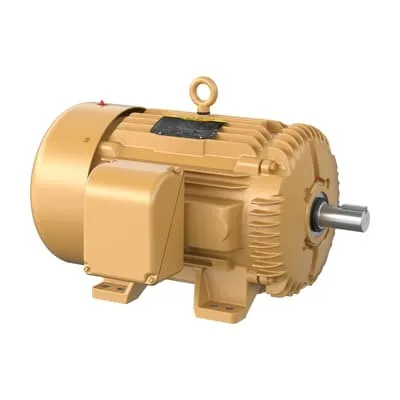

ABB 7BEM4109T General Purpose Motor - IE3 Premium
Part Number: 7BEM4109T
Quick Summary
The 7BEM4109T ABB General Purpose Motor is a 40 HP, 230 V three-phase drive ideal for pumps, fans, and conveyors in demanding industrial environments. Engineers often wrestle with energy waste, higher operating costs, and extended downtime caused by older motors. This model delivers strong durability with TEFC enclosure, regreasable bearings, and a robust 324TS frame, while meeting key compliance standards. It carries CSA, CSA EEV, and UR certifications and aligns with IE3 premium efficiency for energy programs and utility incentives. In practice, this motor reduces energy consumption and maintenance costs, while offering straightforward installation, compatibility with 230/460 V supply, and reliable performance in continuous-duty applications across manufacturing and processing plants.
Product Information
Extended Description
7BEM4109T ABB: General Purpose Motor 40 Hp 230 V (EM4109T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,3530RPM,3PH,60HZ,324TS,1058M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM4109T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
10LYF371: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
EM4109T
Gross Volume
18748.226 in³
Gross Weight
551 lb
Horsepower Rating UL/CSA
40.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot
Insulation Class
F
Invoice Description
40HP,3530RPM,3PH,60HZ,324TS,1058M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 40 HP, 3600 RPM, Frame Size 324Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM410
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
90 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
551 lb
Product Net Width
25.688 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
90 A | 45 A
Rated Efficiency
92.40 %
Rated Speed
3530 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
40 HP, 3600 RPM, Frame Size 324Ts, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
G
Voltage Rating
230 V | 460 V
Energy efficiency is a core feature, delivering IE3 premium efficiency that lowers operating costs and reduces energy consumption in continuous-duty loads such as pumps and conveyors. This translates to measurable business value through lower kW/hrs per hour of operation and favorable utility rebates when integrated into an energy management program. The TEFC enclosure and rugged ball bearings provide reliable protection in dusty or moist factory floors, extending service intervals and minimizing unplanned downtime for material handling, packaging lines, and process equipment. With a 324TS frame and foot-mounted horizontal orientation, installation is straightforward, enabling quick retrofits and smoother OEM integrations across existing conveyor, fan, and pump systems. The motor’s 230/460 V, 60 Hz, 3-phase configuration supports versatile plant electrical infrastructure, reducing the need for rewiring during upgrades. Regreasable lubrication and durable construction address maintenance challenges common in high-cycle applications, delivering lower maintenance costs and longer life in industrial environments. Stocked at multiple warehouses for rapid deployment, the 40 HP rating supports scalable capacity planning for mid-sized manufacturing lines, processing plants, and material handling tasks.
