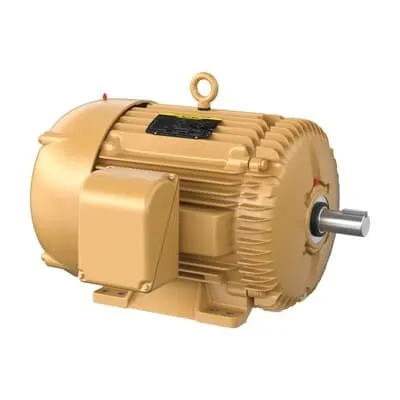

ABB 7BEM4114T General Purpose Motor - TEFC IE3
Part Number: 7BEM4114T
Quick Summary
ABB 7BEM4114T General Purpose Motor is a 50 HP, three-phase motor designed for reliable continuous duty in pumps, conveyors, and general machine tooling. With global stocking and zero-day lead time, engineers can avoid downtime and sourcing delays on critical projects. It carries CSA, CSA EEV, and UR certifications and is built with a TEFC enclosure and NEMA Premium efficiency to meet demanding industrial standards. This combination of rugged design, standard mounting, and broad availability translates to predictable maintenance costs, faster procurement, and improved project ROI for manufacturing facilities. The motor is rated for 60 Hz operation, with a top speed of 3540 r/min and a service factor of 1.15, and is stocked in major warehouses worldwide for rapid deployment.
Product Information
Extended Description
7BEM4114T ABB: General Purpose Motor 50 Hp 230 V (EM4114T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,3540RPM,3PH,60HZ,326TS,1252M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM4114T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
12LYM009: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
EM4114T
Gross Volume
18748.226 in³
Gross Weight
586 lb
Horsepower Rating UL/CSA
50.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot
Insulation Class
F
Invoice Description
50HP,3540RPM,3PH,60HZ,326TS,1252M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 50 HP, 3600 RPM, Frame Size 326Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM411
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
90 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
586 lb
Product Net Width
25.688 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
112 A | 56 A
Rated Efficiency
93 %
Rated Speed
3540 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
50 HP, 3600 RPM, Frame Size 326Ts, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The IE3 premium efficiency rating reduces energy consumption during continuous operation, lowering lifecycle costs for pumps, fans, and conveyors in high-cycle environments. Application: Widely used in manufacturing lines where energy intensity is a concern. Feature → Business Impact → Application: TEFC enclosure protects internal components from dust and moisture, boosting uptime in dirty mill floors and outdoor installations. Application: Food processing, packaging, and material handling where environmental exposure is common. Feature → Business Impact → Application: Dual voltage capability (230/460 V) and 60 Hz compatibility simplify installation and stocking, reducing wiring errors and spare-parts inventory. Application: Mixed-voltage facilities and upgrade projects. Feature → Business Impact → Application: 326TS frame with 1.88 in shaft and 6312 ball bearings enables long bearing life and smoother operation, lowering maintenance cycles. Application: High-load conveyors and pump services with demanding start/stop profiles. Feature → Business Impact → Application: 1.15 service factor and DOL starting provide robust startup torque and reliability under overload, improving process stability. Application: Continuous-duty drives in motion-control systems. Feature → Business Impact → Application: Global stocking and 0-day lead times allow fast deployment and local service. Application: Project rollouts, turn-key installations, and maintenance plans in multi-site operations.
