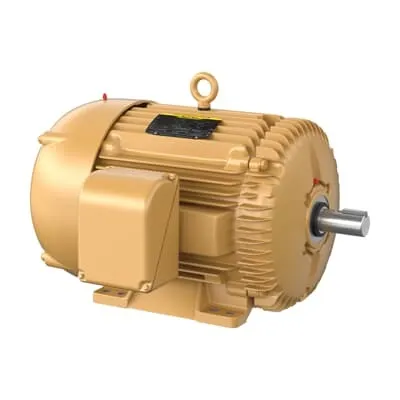

ABB 7BEM4115TS General Purpose Motor - TEFC 60Hz
Part Number: 7BEM4115TS
Quick Summary
ABB 7BEM4115TS is a general purpose motor designed for reliable drive of pumps, fans, and conveyors in industrial automation. This model helps avoid long lead times with immediate stock in multiple US warehouses. It carries CSA, CSA EEV, and UR approvals, aligning with essential electrical safety and performance standards. With a 3-phase, 50 HP rating and a TEFC enclosure, it delivers robust performance in demanding environments. The 1775 rpm speed and 326TS frame ensure broad mechanical compatibility, while the stock availability supports OEM production schedules and rapid commissioning. Operational reliability and efficiency make it a solid choice for mid-size industrial applications.
Product Information
Extended Description
7BEM4115TS ABB: General Purpose Motor 50 Hp 230 V (EM4115TS)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,1775RPM,3PH,60HZ,326TS,1272M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM4115TS
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
12LYH011: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
EM4115TS
Gross Volume
18748.226 in³
Gross Weight
639 lb
Horsepower Rating UL/CSA
50.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
50HP,1775RPM,3PH,60HZ,326TS,1272M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 50 HP, 1800 RPM, Frame Size 326Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM411
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
85 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
639 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
116 A | 58 A
Rated Efficiency
94.50 %
Rated Speed
1775 r/min
Replaced Product ID (OLD)
7B12H011Z279G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
50 HP, 1800 RPM, Frame Size 326Ts, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure and 326TS frame provide superior protection against dust and moisture, enabling reliable operation in rugged plant environments. Business Impact: Reduces maintenance downtime and extends bearing life in factories with dusty conveyors or outdoor equipment. Application: Ideal for general purpose drives in material handling and process lines. Feature: 50 HP, 3-phase, 60 Hz performance delivers ample torque for mid-size loads. Business Impact: Improves start-up reliability and load handling, supporting conveyor and pump systems with predictable behavior. Application: Suitable for OEM equipment and retrofit projects requiring robust, standard-duty motors. Feature: 1775 rpm rated speed and 326TS frame with foot mounting and horizontal orientation (F1). Business Impact: Streamlines installation with common mounting patterns and compatibility with existing pulleys and couplings. Application: Fits standard plant layouts and spacer-friendly layouts for belt-driven systems. Feature: Efficiency rating IE3 and service factor 1.15. Business Impact: Lowers energy cost and provides resilience during transient loads, improving overall plant efficiency. Application: Best for continuous operation in regulated environments where energy efficiency matters. Feature: Regreasable bearings (6312 / 6311) and 1.88 in shaft diameter enhance longevity and serviceability. Business Impact: Reduces unscheduled maintenance and extends overhaul intervals. Application: Critical for high-cycle conveyors and fans where downtime is costly. Feature: Direct On Line start and TEFC sealing reduce integration risk with existing VFD projects or mechanical drives. Business Impact: Simplifies integration and reduces control-system complexity. Application: Works well with standard starters and plant automation architectures. Feature: Compliance and stock availability with CSA, CSA EEV, UR approvals and multi-warehouse stocking. Business Impact: Ensures regulatory alignment and rapid procurement for uptime guarantees. Application: Supports global OEM supply chains and repair/maintenance operations.
