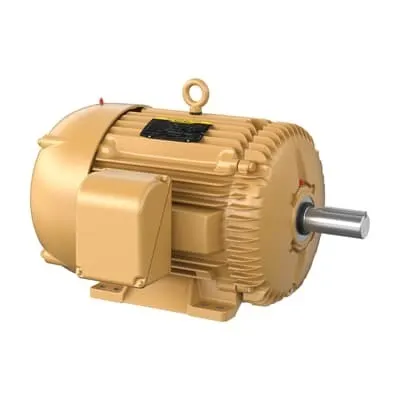

ABB 7BEM4117T General Purpose Motor - CSA EEV/UR
Part Number: 7BEM4117T
Quick Summary
ABB 7BEM4117T General Purpose Motor powers 3-phase equipment in industrial applications such as pumps and conveyors. Achieving reliable performance without oversizing or energy waste can be a challenge when matching motors to mixed-load processes. This model carries CSA EEV and UR certifications for electrical safety and reliability, along with Premium Efficiency designation to help meet efficiency mandates. Its 230/460 V operation, TEFC enclosure, and 326T frame support straightforward integration across global facilities. Stocked at multiple warehouses reduces lead times, while the robust design translates into lower maintenance costs and longer service life. This makes it a practical choice for procurement teams prioritizing availability, traceability, and total cost of ownership.
Product Information
Extended Description
7BEM4117T ABB: General Purpose Motor 30 Hp 230 V (EM4117T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1180RPM,3PH,60HZ,326T,1264M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM4117T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
12LYC051: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
EM4117T
Gross Volume
18748.226 in³
Gross Weight
655 lb
Horsepower Rating UL/CSA
30.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
30HP,1180RPM,3PH,60HZ,326T,1264M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 30 HP, 1200 RPM, Frame Size 326T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM4117
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
78 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
655 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
78 A | 39 A
Rated Efficiency
93 %
Rated Speed
1180 r/min
RoHS Information
RoHS Non-Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.13 in
Short Description
30 HP, 1200 RPM, Frame Size 326T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 30 HP, 1180 r/min 3PH motor delivers strong torque at start and steady running, reducing cycle times in conveyor lines and pump stations while keeping energy use predictable under peak loads. This translates to lower energy bills and improved line uptime for continuous operations in manufacturing floors and process plants. The TEFC enclosure provides protection against dust and moisture, enabling longer service intervals in harsh environments such as packaging lines or material handling bays. With a 326T frame and 2.13 in shaft diameter, installation aligns with standard OEM bases and couplings, streamlining retrofits and upgrades across facilities. Direct On Line starting minimizes additional components, simplifying control philosophy and reducing upfront capital expenditure. The service factor of 1.15 supports occasional overloads typical in startup sequences, boosting motor resilience in demanding drives. The regreasable bearings extend lubrication life, lowering maintenance costs and downtime, while the 230/460 V, 60 Hz rating ensures compatibility with common plant electrical systems. Altitude and ambient temperature ratings (1000 m, 40 °C) expand site applicability in global operations, and the 326T frame size fits a wide range of equipment footprints, from extruders to blowers. Stock availability across multiple warehouses reduces procurement lead times, enhancing project scheduling and inventory planning. Industry professionals gain measurable value through improved reliability, compliance with safety and efficiency standards, and reduced total cost of ownership in long-running automation projects.
Get a Quick Quote for a ABB 7BEM4117T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM4117T?
Enquire Now
FAQs
Yes. The motor is specifically designed for a 326T frame with foot-mounted construction and horizontal mounting. It uses a 2.13 in shaft diameter and supports direct on line starting, allowing straightforward bolting to standard base plates and common coupling interfaces in most industrial drives. TEFC enclosure provides protection in moderate dust and moisture environments, simplifying installation in shared equipment rooms.
The 7BEM4117T is a 3-phase induction motor rated for 230 V or 460 V at 60 Hz. It delivers 30 HP at 1180 r/min with a rated current of about 78 A at 230 V or 39 A at 460 V. The duty is continuous, and the motor features a TEFC enclosure, a 326T frame, and a shaft diameter of 2.13 inches, making it suitable for demanding continuous-load applications.
This general purpose motor excels in conveyors, pumps, fans, and other general automation equipment requiring reliable, continuous operation. With a 30 HP rating, 1180 r/min nominal speed, and a service factor of 1.15, it handles startup surges and moderate overloads typical in material handling and processing lines. Its TEFC enclosure and 230/460 V capability suit both OEM machines and retrofit projects in manufacturing and packaging.
The 7BEM4117T carries CSA and UR recognized component certifications, plus CSA EEV for enhanced electrical safety and reliability. It aligns with NEMA design intentions for robust industrial performance and meets premium energy efficiency criteria to support regulatory and sustainability goals in production environments.
Lead time is listed as 0 day, and the motor is stocked at multiple warehouses (examples include EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU). This translates to fast fulfillment, reduced downtime, and improved project scheduling. Availability, combined with a robust, low-maintenance design and regreasable bearings, supports favorable total cost of ownership over the motor’s life cycle.
