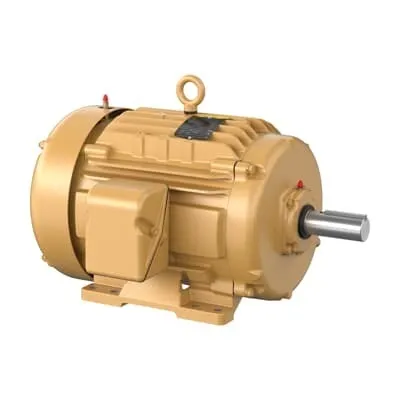

ABB 7BEM4118T General Purpose Motor - Premium Efficiency
Part Number: 7BEM4118T
Quick Summary
ABB 7BEM4118T general purpose motor delivers reliable 25 HP performance for 3-phase industrial applications such as conveyors and pumps. In the real world, downtime and energy costs erode margins; this motor is engineered to minimize both. With CSA, CSA EEV, and UR certifications, a TEFC enclosure, and Premium Efficiency ratings, it meets tough industry standards. For OEMs and service teams, the combination of 256T frame, 60 Hz operation, and easy installation translates to lower lifecycle costs. The motor's 2-pole design yields a smooth 3520 r/min speed at 60 Hz and a robust service factor of 1.15, supporting heavy loads. Lubrication is designed for regreasable bearings, extending maintenance intervals, while stock availability across multiple warehouses reduces lead times.
Product Information
Extended Description
7BEM4118T ABB: General Purpose Motor 25 Hp 230 V (EM4118T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
44M 2P TEFC HOR 256T SE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM4118T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
09LYC101: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
EM4118T
Gross Volume
9651.933 in³
Gross Weight
138.346 kg
Horsepower Rating UL/CSA
25.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
44M 2P TEFC HOR 256T SE
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 25 HP, 3600 RPM, Frame Size 256T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM4118
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
88 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
138.346 kg
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
58 A | 29 A
Rated Efficiency
91.70 %
Rated Speed
3520 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
25 HP, 3600 RPM, Frame Size 256T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature: Premium Efficiency and NEMA 12-12 rating. Business Impact: Reduces energy consumption and operating costs while maintaining high performance under continuous duty. Application: Ideal for continuous-duty lines in manufacturing and packaging. Feature: TEFC enclosure and rugged bearings (6309 | Ball). Business Impact: Superior protection against dust and humidity, extending bearing life and reducing maintenance. Application: Suitable for dusty plant floors and humid environments such as conveyors and mixers. Feature: 256T frame, foot-mounted horizontal mounting (F1). Business Impact: simplifies integration with existing OEM equipment and minimizes installation downtime. Application: OEM replacements and retrofits in conveyors, pumps, and fans. Feature: 25 HP, 3600 r/min (rated 3520 r/min at 60 Hz), 2-pole design. Business Impact: High starting torque with robust speed control, enabling direct-on-line (DOL) starts without external soft-starts. Application: Ideal for line drives, fans, and pump assemblies. Feature: Dual voltage 230/460 V and 3-phase, 60 Hz operation. Business Impact: Flexible power sourcing reduces inventory complexity and accelerates commissioning. Application: Plants with varied power infrastructures can standardize on a single motor for multiple sites.
Get a Quick Quote for a ABB 7BEM4118T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM4118T?
Enquire Now
FAQs
The 7BEM4118T is a 3-phase, 60 Hz motor with a 256T frame designed for foot-mounted horizontal mounting (F1). Use a DOL starter or suitable VFD with protections aligned to TEFC enclosure. Confirm mounting holes and shaft diameter (1.63 in) match your equipment, and connect to a 230/460 V supply per the nameplate. Stocked at multiple warehouses to minimize lead times.
Key specs at 60 Hz include 25 HP, rated speed 3520 r/min, synchronous speed 3600 r/min, voltage 230/460 V, three-phase power, and a service factor of 1.15. Rated currents are 58 A at full load and 29 A per phase under dual voltage conditions. Insulation class is F, with a Premium Efficiency rating.
Yes. Designed for continuous duty, the ABB 7BEM4118T combines a TEFC enclosure, 256T frame, and 1.15 service factor to support long-running applications like conveyors and pumps. Its rugged bearings and regreasable lubrication further reduce maintenance interruptions, helping to sustain uptime in harsh industrial environments.
This motor carries CSA, CSA EEV, and UR certifications, ensuring electrical safety and compliance with North American standards. It also features a TEFC enclosure and NEMA-related efficiency designation, aligning with industry and regulatory requirements for reliability and performance in U.S. plants.
Expect reduced maintenance thanks to regreasable bearings and the robust TEFC design, which minimizes environmental exposure. The 25 HP rating paired with premium efficiency lowers energy costs, improving return on investment. Stock availability across warehouses shortens lead times, supporting faster project ROI and dependable service life.
