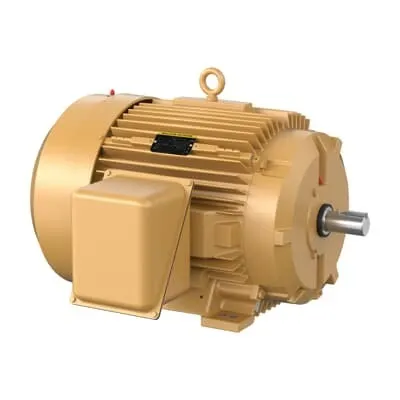

ABB EM4310T General Purpose Motor - NEMA Premium Efficiency
Part Number: 7BEM4310T
Quick Summary
General Purpose Motor ABB EM4310T delivers reliable 60 HP at 230 V for continuous-duty drive in conveyors, pumps, and machines. Users often face energy waste and overheating; TEFC enclosure plus premium efficiency helps reduce energy loss and downtime. Highlights include NEMA Premium efficiency, UR recognition, CSA/UL compliant standards, ensuring safe operation in harsh environments. With a global stocking network and a robust 364TS frame, this motor supports fast procurement, simple installation, and long-term cost savings across industrial facilities.
Product Information
Extended Description
7BEM4310T ABB: General Purpose Motor 60 Hp 230 V (EM4310T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60HP,3560RPM,3PH,60HZ,364TS,A36056M
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6313
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EM4310T
Certification Agency
CCSAUSEEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
A36C-0000000039
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
364
Frequency (f)
60 Hz
Global Commercial Alias
EM4310T
Gross Volume
33833.008 in³
Gross Weight
367.41 kg
Horsepower Rating UL/CSA
60.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
NEMA Foot
Insulation Class
F
Invoice Description
60HP,3560RPM,3PH,60HZ,364TS,A36056M,TEFC
Lubrication
Regreasable
Made To Order
No
Maximum Speed
4500 r/min
Medium Description
General Purpose 3PH Enclosed, 60 HP, 3600 RPM, Frame Size 364Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM431
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
364TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
60 Hp
Power Factor
91 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
367.41 kg
Product Net Width
32.5 in
Product Type
NEMA_PREMIUM
Quote Only
No
Rated Current (In)
130 A | 65.1 A
Rated Efficiency
94.50 %
Rated Speed
3555 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
60 HP, 3600 RPM, Frame Size 364Ts, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
Menden, Germany | China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
F
Voltage Rating
230 V | 460 V
Feature: 60 HP output at 60 Hz with 230/460 V three-phase rating. Business Impact: Provides scalable, flexible power suited for global installations, reducing the need for multiple motor variants. Application: Ideal for conveyors, pumps, and general machinery in automation lines. The ABB EM4310T enables consistent torque and speed control, contributing to improved process stability and throughput. Feature: TEFC enclosure and 364TS foot-mounted frame. Business Impact: Enhances protection in dusty or humid plants and simplifies mounting, lowering maintenance costs. Application: Suitable for manufacturing floors, material handling, and packaging lines where enclosure integrity matters. Feature: NEMA Premium efficiency and UR/UL/CSA compliance. Business Impact: Reduces energy consumption and ensures regulatory alignment, delivering lower operating costs and risk mitigation. Application: Preferred in energy-conscious facilities and environments with strict compliance requirements. Feature: Regreasable bearings (6313) and robust bearings design. Business Impact: Extends bearing life, reduces lubrication downtime, and improves uptime. Application: Heavy-duty, continuous-duty operation in conveyors and pumps with demanding load profiles. Feature: Direct-on-line starting and 3-phase operation. Business Impact: Simplifies start-up, minimizes control hardware, and supports rapid installation. Application: Quick replacement in existing lines and seamless integration with standard plant controls. Feature: 364TS frame, 1.88 in shaft, 32.5 in width, 25.625 in height, 40.625 in length (Product Net). Business Impact: Clear mechanical footprint supports compatibility checks during retrofits. Application: Facilitates field installation and enclosure planning for retrofit projects. Feature: Stocked at multiple warehouses with 0 day lead time. Business Impact: Accelerates procurement, reduces project delays, and improves supply chain resilience. Application: Industrial facilities requiring fast replenishment and minimal downtime during upgrades or expansions.
