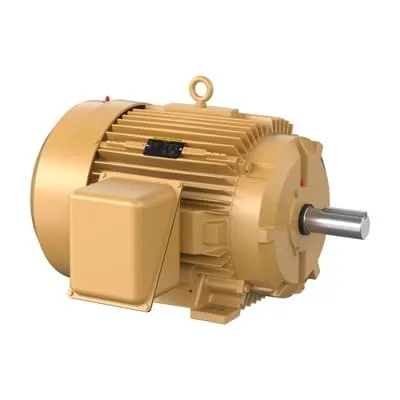

ABB 7BEM4316T-12 General Purpose Motor - Premium Efficiency
Part Number: 7BEM4316T-12
Quick Summary
ABB 7BEM4316T-12 General Purpose Motor is a 75 HP, 230 V three-phase drive ideal for conveyors, pumps, and processing equipment. In practice, buyers confront long lead times, stock uncertainty, and opaque warranty terms that disrupt uptime. It carries Premium Efficiency ratings, a TEFC enclosure, and compliance marks including UL, UR, and NEMA design standards. Designed for fast installation and predictable maintenance, it supports 230/460 V operation and horizontal mounting across plant floors. With a compact 365T frame and a robust 1.15 service factor, this motor delivers reliable torque in demanding environments. The product is stocked across multiple warehouses with zero-day lead times, reducing procurement risk and helping projects stay on schedule. It supports easy maintenance cycles and straightforward replacement, making it a practical choice for OEMs seeking uptime and predictable total cost of ownership.
Product Information
Extended Description
7BEM4316T-12 ABB: General Purpose Motor 75 Hp 230 V (EM4316T-12)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1780RPM,3PH,60HZ,365T,A36070M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6313
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EM4316T-12
Certification Agency
CCSAUSEEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
A36C-0000000097
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
365
Frequency (f)
60 Hz
Global Commercial Alias
EM4316T-12
Gross Volume
33833.008 in³
Gross Weight
433.181 kg
Horsepower Rating UL/CSA
75.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
75HP,1780RPM,3PH,60HZ,365T,A36070M,TEFC
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
General Purpose 3PH Enclosed, 75 HP, 1800 RPM, Frame Size 365T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM4316
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
86 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
433.181 kg
Product Net Width
32.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
172 A | 85.9 A
Rated Efficiency
95.40 %
Rated Speed
1780 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.38 in
Short Description
75 HP, 1800 RPM, Frame Size 365T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Wye Start - Delta Run
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
230 V | 460 V
Premium Efficiency and TEFC enclosure deliver measurable energy savings and reliable protection in dusty plant environments. Business impact: reduced operating costs and extended motor life, enabling longer maintenance intervals and compliant performance in conveyors and pumps. Application: suitable for general industrial tasks where clean, consistent torque is required. 230/460 V, 60 Hz operation and a 75 HP rating provide compatibility with standard plant wiring and VFD-driven systems, supporting energy-efficient drives and precise speed control in fans and mixers. Frame 365T with horizontal, foot-mounted mounting simplifies installation, minimizes installation time, and enables easy retrofits on existing equipment. Lubrication is regreasable, supporting long service intervals and lower maintenance costs in remote locations. Bearing design (6313, Ball) and NEMA Design B classification enhance durability under fluctuating loads common in material handling and processing lines. Synchronous speed of 1800 r/min and maximum speed of 2700 r/min give engineers options for torque curves and system responsiveness. The motor’s 1.15 service factor provides extra margin for start-up surges and brief overloads, which is critical in start/stop applications like conveyors and presses. Stocked at multiple warehouses with 0-day lead time, this model reduces downtime and procurement risk, a direct contributor to ROI for OEMs and maintenance teams. Overall, the combination of Premium Efficiency, rugged TEFC housing, and industry-standard mounting makes it a dependable choice for a wide range of industrial automation projects requiring robust, compliant performance.
