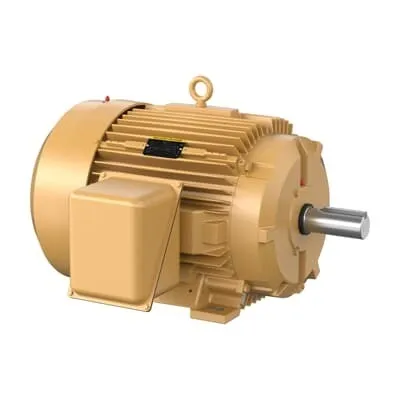

ABB 7BEM4316T-5 General Purpose Motor - TEFC
Part Number: 7BEM4316T-5
Quick Summary
ABB 7BEM4316T-5 is a General Purpose Motor designed for demanding industrial applications, delivering 75 HP at 575 V in a robust 3-phase package. This motor is engineered to reduce unplanned downtime and energy waste in pumps, conveyors, fans, and other heavy equipment. With certifications such as NEMA Premium Efficiency, UR, and CCSAUSEEV, it meets stringent safety and energy standards while supporting compliance reporting. The TEFC enclosure and rugged 365T frame simplify installation and maintenance, enabling reliable operation in moderate ambient conditions and extended service life. This combination of efficiency, durability, and readily available stocked inventory translates to lower total cost of ownership for industrial facilities seeking consistent performance in 60 Hz environments.
Product Information
Extended Description
7BEM4316T-5 ABB: General Purpose Motor 75 Hp 575 V (EM4316T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1780RPM,3PH,60HZ,365T,A36070M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6313
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EM4316T-5
Certification Agency
CCSAUSEEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
A36C-0000000028
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
365
Frequency (f)
60 Hz
Global Commercial Alias
EM4316T-5
Gross Volume
42236.625 in³
Gross Weight
411.408 kg
Horsepower Rating UL/CSA
75.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
75HP,1780RPM,3PH,60HZ,365T,A36070M,TEFC
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
General Purpose 3PH Enclosed, 75 HP, 1800 RPM, Frame Size 365T, Standard Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (EM4316T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
86 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
41.5 in
Product Net Height
29.5 in
Product Net Weight
411.408 kg
Product Net Width
34.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
68.7 A
Rated Efficiency
95.40 %
Rated Speed
1780 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.38 in
Short Description
75 HP, 1800 RPM, Frame Size 365T, Standard, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
575 V
Feature → Business Impact → Application: TEFC enclosure protects windings from dust, moisture, and contamination, boosting motor uptime in hostile environments and reducing maintenance frequency for conveyor lines and packaging equipment. Application: Food & beverage lines, material handling, and mixed load drives where cleanliness and reliability matter. Feature → Business Impact → Application: 365T frame size and robust mechanical design support straightforward mounting and compatibility with common drive systems, accelerating installation and minimizing engineering time on new lines. Application: Retrofit projects and new builds targeting standard mounting footprints. Feature → Business Impact → Application: 75 HP, 1780 r/min (rated), and 575 V three-phase operation deliver high torque at start and steady load response, enabling efficient drive of pumps and fans with minimal voltage drop. Application: HVAC systems, water treatment, and process cooling. Feature → Business Impact → Application: Direct-on-line starting with a 60 Hz profile reduces upfront equipment complexity and cost, while maintaining controllable load on electrical infrastructure. Application: Small to mid-size conveyors and material handling equipment. Feature → Business Impact → Application: Regreasable bearings and service factor 1.15 extend bearing life and reduce unscheduled maintenance, lowering total maintenance costs over the motor’s life. Application: High-cycle fans and mixers in industrial environments. Feature → Business Impact → Application: Premium efficiency (NEMA Premium) and 95.40% rated efficiency support energy-saving goals and compliance with energy audits, enhancing sustainability programs. Application: Continuous-duty drives in manufacturing and process plants. Additional notes: The motor is designed for 3PH, 60 Hz operation, with a shaft diameter of 2.38 in and foot-mounted base type, ensuring compatibility with common gearboxes and belt drives; the 365T frame supports a wide range of couplings and mounting accessories. Long-tail keywords embedded include 575V three-phase motor, frame 365T, TEFC enclosure, NEMA Design B, direct-on-line start, and high-efficiency industrial motor.
