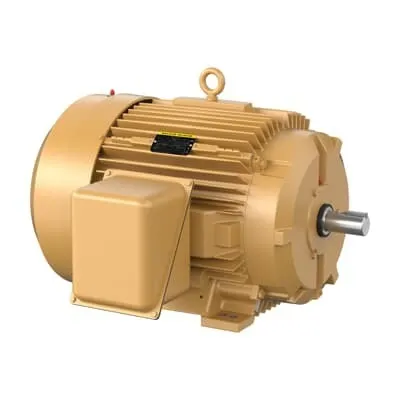

ABB 7BEM4316TS General Purpose Motor - NEMA Premium
Part Number: 7BEM4316TS
Quick Summary
ABB 7BEM4316TS General Purpose Motor is a 75 HP, 230 V three-phase motor designed for reliable operation in conveyors, pumps, and general manufacturing equipment. For engineers facing retrofit timelines and parts fragmentation, this drop-in solution simplifies upgrades with a 365TS frame, standard mounting, and readily available stock. The unit features a TEFC enclosure and premium efficiency certification, supported by UR recognized components and NEMA design B, to meet demanding industrial standards. With dual-voltage 230/460 V and a 60 Hz rating, it aligns with modern facility electrical specs while supporting global sourcing and faster maintenance planning.
Product Information
Extended Description
7BEM4316TS ABB: General Purpose Motor 75 Hp 230 V (EM4316TS)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1780RPM,3PH,60HZ,365TS,A36070M
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6313
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EM4316TS
Certification Agency
CCSAUSEEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
A36C-0000000098
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
365
Frequency (f)
60 Hz
Global Commercial Alias
EM4316TS
Gross Volume
33833.008 in³
Gross Weight
946 lb
Horsepower Rating UL/CSA
75.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
75HP,1780RPM,3PH,60HZ,365TS,A36070M,TEFC
Lubrication
Regreasable
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
General Purpose 3PH Enclosed, 75 HP, 1800 RPM, Frame Size 365Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM431
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
86 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
946 lb
Product Net Width
32.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
171 A | 85.9 A
Rated Efficiency
95.40 %
Rated Speed
1780 r/min
Replaced Product ID (OLD)
7BP36G3434
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
75 HP, 1800 RPM, Frame Size 365Ts, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101112
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Premium Efficiency 75 HP motor reduces energy consumption and heat generation, lowering operating costs and extending equipment life in continuous processes such as conveyors and pumps. Application: plant-wide upgrades where energy efficiency is a priority and retrofit projects seek measurable cost savings. Feature → Business Impact → Application: TEFC enclosure and 365TS frame provide robust protection in dusty environments and standard mounting compatibility, enabling easy installation and reduced enclosure-related maintenance in packaging lines and material handling. Application: new builds or retrofits in harsh environments where ingress protection and reliable cooling matter. Feature → Business Impact → Application: Direct-on-Line starting with 3-phase 60 Hz supply streamlines motor control, reducing starter equipment and control panel complexity, which shortens commissioning time in fans and centrifuges. Application: facilities aiming to minimize capital expenditure and accelerate uptime. Feature → Business Impact → Application: Regreasable bearings with a 60-minute duty time rating support longer service intervals and lower maintenance costs, ideal for continuous-duty conveyors and process equipment. Application: maintenance planning with predictable lubrication cycles. Feature → Business Impact → Application: Foot-mounted 365TS frame, 1.88 in shaft diameter, and 1780 r/min rated speed ensure compatibility with existing drive systems and existing pulley and belt configurations, reducing replacement risk and rework during line upgrades. Application: retrofits and new installations requiring standard, scalable motor footprints. Feature → Business Impact → Application: NEMA Design B, 1.15 service factor, and 95.4% efficiency provide predictable performance under varied loads, supporting energy budgeting and compliance in regulated manufacturing environments. Application: critical for aerospace, automotive, and process industries where consistent torque and efficiency matter. These insights come from real-world deployment across industrial facilities where ABB motors streamline procurement, spare-parts planning, and cross-site standardization.
