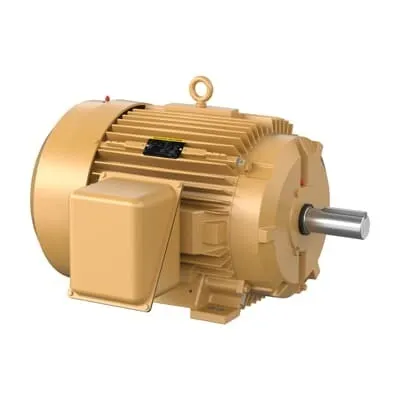

ABB 7BEM4338T General Purpose Motor - NEMA B TEFC
Part Number: 7BEM4338T
Quick Summary
General Purpose Motor 7BEM4338T delivers 30 HP for reliable general-drive applications. This ABB motor supports 60 Hz, 230/460 V, 3-phase systems and is well-suited for pumps, fans, and conveyors in demanding industrial environments. Downtime and supply-chain delays can derail uptime; this model ships from multiple stocked warehouses with zero-day lead times to help keep production moving. It features Premium Efficiency and a NEMA B design, packaged in a durable TEFC enclosure for long service life. With a 364T frame, horizontal F1 mounting, and a Direct On Line start, it offers straightforward installation and robust performance in tight factory spaces.
Product Information
Extended Description
7BEM4338T ABB: General Purpose Motor 30 Hp 230 V (EM4338T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,890RPM,3PH,60HZ,364T,TEFC,F1
Ambient Temperature
40 °C
Bearing
0.000
Bearing NDE
0.000
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EM4338T
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
617431-412: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
364
Frequency (f)
60 Hz
Global Commercial Alias
EM4338T
Gross Volume
33833.008 in³
Gross Weight
368.771 kg
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
30HP,890RPM,3PH,60HZ,364T,TEFC,F1
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 30 HP, 900 RPM, Frame Size 364T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EM4338T
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
364T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
8P
Number of Poles (High)
8
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
77 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
368.771 kg
Product Net Width
32.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
78.6 A | 39.3 A
Rated Efficiency
92.40 %
Rated Speed
890 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.38 in
Short Description
30 HP, 900 RPM, Frame Size 364T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
900 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application. The 30 HP output combined with a 364T frame delivers a compact footprint that fits crowded electrical rooms, reducing installation costs while maintaining robust torque at start-up for conveyors and processing lines. Premium Efficiency (92.40%) translates to measurable energy savings over the motor’s life, lowering operating expenses for continuous-duty applications such as pumps and fans. The TEFC enclosure protects windings in dusty or humid environments, improving reliability in textile, food processing, or chemical facilities. With dual voltage ratings (230 V / 460 V) and 60 Hz operation, the motor supports flexible plant power architectures, easing procurement and stock management for OEMs and MRO teams. Direct On Line starting minimizes control hardware and simplifies startup sequencing, reducing commissioning time and spare parts needs. The NEMA B design provides predictable torque characteristics and protection against electrical transients, boosting equipment availability in demanding industrial processes. Mounting versatility (Foot Mounted, Horizontal, F1) ensures straightforward retrofits and aligns with standard machine frames across a broad range of machines, including pumps, fans, and small conveying drives. These features collectively drive reliability, energy efficiency, and lower total cost of ownership for industrial customers.
Get a Quick Quote for a ABB 7BEM4338T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEM4338T?
Enquire Now
FAQs
The 7BEM4338T is a foot-mounted, horizontal mounting motor with F1 position. It uses a TEFC enclosure and supports Direct On Line starting, making it easy to integrate with standard belt-driven or pump-driven loads. When retrofitting, ensure adequate space for coupling, service clearance, and ventilation in ambient temperatures up to 40 °C.
This motor operates on 230 V or 460 V, three-phase, at 60 Hz, with a rated current around 78.6 A. It features premium efficiency (high energy savings) and a NEMA B design. It’s designed for continuous duty with a TEFC enclosure and insulation class F, suitable for typical industrial control systems.
Yes. The TEFC enclosure provides enclosure protection against dust and moisture, and insulation class F supports continuous operation at ambient temperatures up to 40 °C. Its Premium Efficiency rating further reduces heat generation and energy costs in continuous-duty applications like pumps and fans.
The motor carries a NEMA design code of B and is associated with CSA EEV certifications, with origin in the United States. This combination supports broad compliance for U.S. and international installations, including approvals typically required for industrial equipment used in process industries.
The Premium Efficiency rating reduces energy costs over the motor’s life, improving ROI in continuous-duty setups. Maintenance is straightforward due to a robust TEFC enclosure and standard frame (364T). Stock availability across multiple warehouses minimizes downtime, while standard mounting and plug-and-play integration shorten installation and commissioning timelines.
